Brand: DESTACO

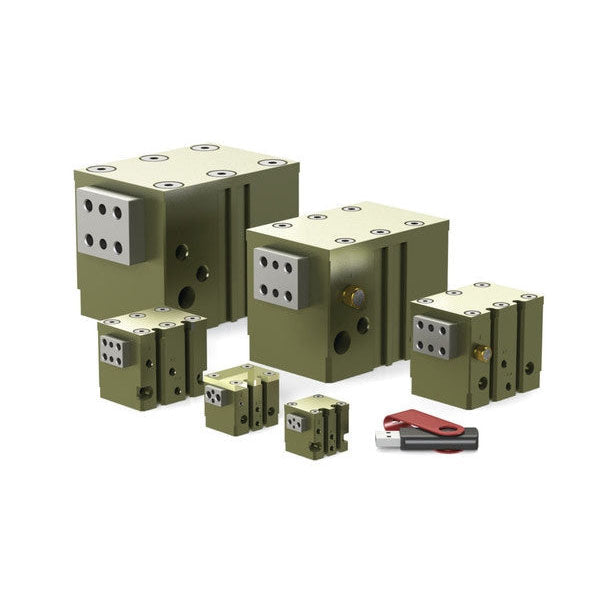

DESTACO ROBOHAND DPDS-175M-038 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-175M-038
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This 2-jaw modular parallel gripper, the DESTACO DPDS-175M-038, boasts a plethora of jaw styles, mounting options, and various air port locations to suit your needs. With 3 different stroke options, you can easily find the perfect fit for your application. Choose from corrosion-resistant hardware or opt for a clean room finish. Featuring DIRECTCONNECT mounting, this gripper is highly configurable and offers a metric grip force of 890N (200lbsf) with a stroke of 9.5mm (0.380 inches) and a cylinder bore of 44.5mm (1.75 inches).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-175M-038 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 890 |
| Grip Force (lbsf) | 200 |
| Stroke (mm) | 9.5 |
| Stroke (in) | 0.380 |
| Cylinder Bore (mm) | 44.5 |
| Cylinder Bore (in) | 1.75 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 127 |
| Maximum Finger Length (in) | 5.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 1.68 |
| Weight (lb) | 3.70 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
