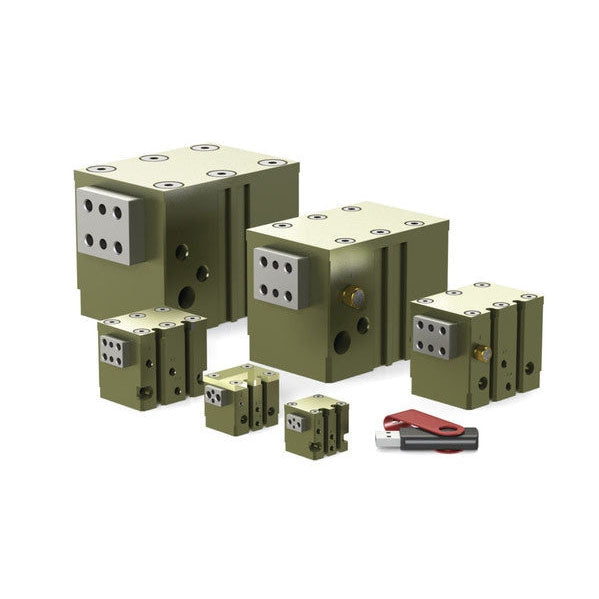

DESTACO ROBOHAND DPDS-125M-038 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-125M-038
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Choose the DESTACO DPDS-125M-038 2 JAW MODULAR PARALLEL GRIPPER for a highly configurable and versatile grasping option. With multiple jaw styles, stroke lengths, and mounting and air port options, this gripper provides customized solutions for any gripping needs. Additionally, it offers corrosion resistant hardware and clean room options. Get your perfect fit with the DIRECTCONNECT Mounting feature and experience a metric grip force of 445N (100lbsf) and a stroke of 9.5mm (0.380in), powered by a 31.8mm (1.25in) cylinder bore.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-125M-038 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 445 |
| Grip Force (lbsf) | 100 |
| Stroke (mm) | 9.5 |
| Stroke (in) | 0.380 |
| Cylinder Bore (mm) | 31.8 |
| Cylinder Bore (in) | 1.25 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.46 |
| Weight (lb) | 1.03 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
