Brand: DESTACO

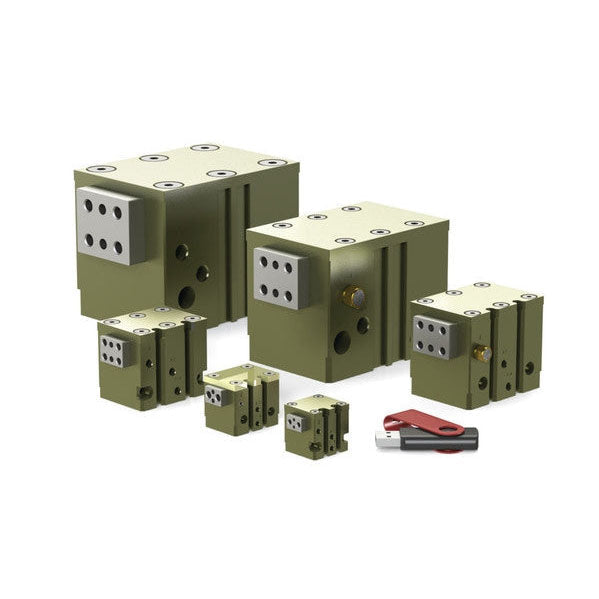

DESTACO DPDS-125M-025 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-125M-025
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This versatile modular parallel gripper, the DESTACO DPDS-125M-025, is highly configurable and features a range of options including multiple jaw styles, mounting and air port locations, and various stroke lengths. With the option for corrosion resistant hardware or clean room compatibility, this gripper offers endless possibilities. It also boasts a strong grip force of 445N (100 lbsf) and a 6.4mm (0.250in) stroke, with a cylinder bore of 31.8mm (1.25in). Don't miss out on the convenience and efficiency of the DIRECTCONNECT mounting system.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-125M-025 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 445 |
| Grip Force (lbsf) | 100 |
| Stroke (mm) | 6.4 |
| Stroke (in) | 0.250 |
| Cylinder Bore (mm) | 31.8 |
| Cylinder Bore (in) | 1.25 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.46 |
| Weight (lb) | 1.03 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
