Brand: DESTACO

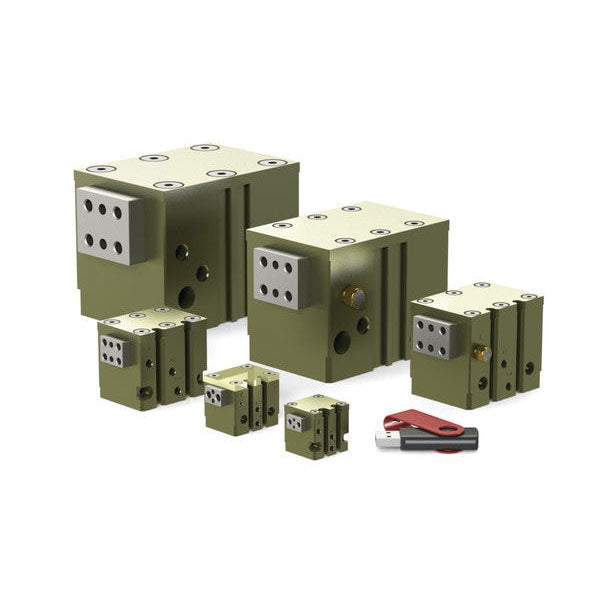

DESTACO ROBOHAND DPDS-125M-019 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-125M-019
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO DPDS-125M-019 2 JAW MODULAR PARALLEL GRIPPER has a variety of jaw styles, air port locations, and mounting options to choose from, making it highly customizable. It also comes in three different stroke lengths and offers corrosion resistant hardware or clean room options. This versatile gripper is designed for precision and reliability, providing a grip force of 445N (100lbsf) and a 4.8mm (0.190in) stroke. With its DIRECTCONNECT mounting feature and powerful performance, the potential uses for this gripper are endless.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-125M-019 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 445 |
| Grip Force (lbsf) | 100 |
| Stroke (mm) | 4.8 |
| Stroke (in) | 0.190 |
| Cylinder Bore (mm) | 31.8 |
| Cylinder Bore (in) | 1.25 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.46 |
| Weight (lb) | 1.03 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
