Brand: DESTACO

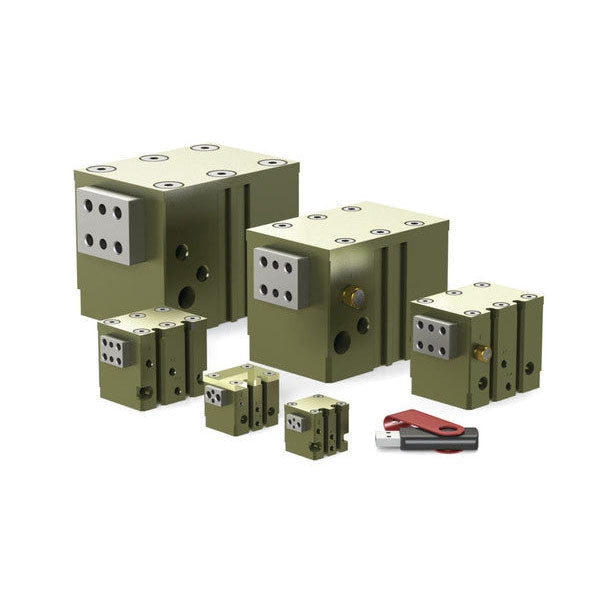

DESTACO ROBOHAND DPDS-056M-013 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-056M-013
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO DPDS-056M-013 2 JAW MODULAR PARALLEL GRIPPER features highly configurable mounting and multiple jaw styles, air port locations, and stroke lengths. It is available in three different strokes and offers options for corrosion resistance and clean room use. The innovative DIRECTCONNECT mounting system and versatile design make this gripper a powerful tool for various gripping needs. With a grip force of 98 N (22 lbsf), a stroke of 3.2 mm (0.130 in), and a cylinder bore of 14.3 mm (0.563 in), this gripper delivers exceptional performance and reliability.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-056M-013 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 98 |
| Grip Force (lbsf) | 22 |
| Stroke (mm) | 3.2 |
| Stroke (in) | 0.130 |
| Cylinder Bore (mm) | 14.3 |
| Cylinder Bore (in) | 0.563 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.050 |
| Accuracy (±in) | 0.002 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.07 |
| Weight (lb) | 0.16 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
