Brand: DESTACO

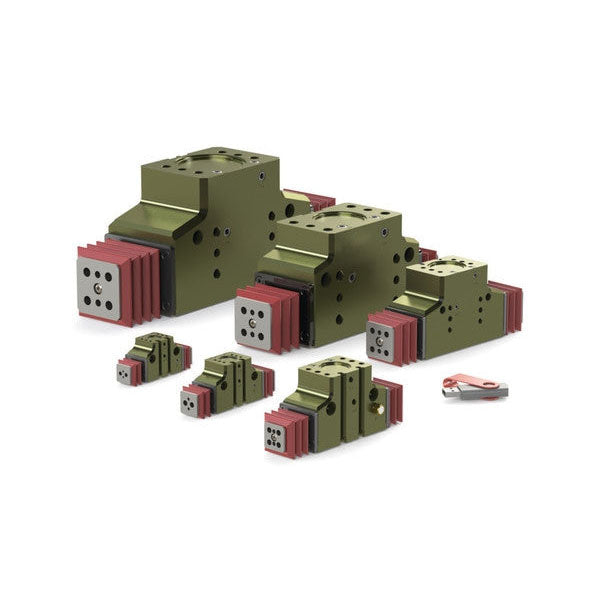

DESTACO DPDL-250M-200 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDL-250M-200
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the unbeatable versatility and efficiency of the DESTACO DPDL-250M-200 2 JAW MODULAR PARALLEL GRIPPER DIRECTCONNECT. With a wide range of jaw styles, mounting and air port locations, and customizable strokes, this 2-jaw parallel gripper is perfect for any job. Choose from 3 different strokes, plus options for corrosion resistance and clean room use. Experience the convenience and power of the DIRECTCONNECT Mounting system. Trust in our highly configurable gripper to deliver superior results every time.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDL-250M-200 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT long stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple, Extended Strokes
| Product | Metric |
| Grip Force (N) | 1,779 |
| Grip Force (lbsf) | 400 |
| Stroke (mm) | 50.8 |
| Stroke (in) | 2.000 |
| Cylinder Bore (mm) | 63.5 |
| Cylinder Bore (in) | 2.5 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 1 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 254 |
| Maximum Finger Length (in) | 10.00 |
| Protection Class | IP66 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Special Feature | Boot Seal |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 2.76 |
| Weight (lb) | 6.08 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
