DESTACO DGC-25 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER

Brand: DESTACO

DESTACO DGC-25 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER

SKU: DE-STA-CO-DGC-25
MPN: DGC-25

  • $1,463.30
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO DGC-25 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER offers a range of two jaw long stroke grippers with spring assist for maximum efficiency. With five models available, the total stroke varies from 20mm to 60mm and the force ranges from 106Lbs[406N] to 521Lbs[2318N]. This compact gripper is perfect for tight spaces, providing a strong grip and high force. The standard spring ensures that components are securely held, even in the event of air failure. Plus, it comes with an inductive sensor holder mounted for added convenience. This product is a must-have for any industrial setting, with an impressive Imperial Grip Force of 474 (N) and 106 (lbsf) and a stroke of 20.0 (mm) or 0.787 (in). Get your hands on this reliable gripper today to enhance your production processes!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO DGC-25 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER

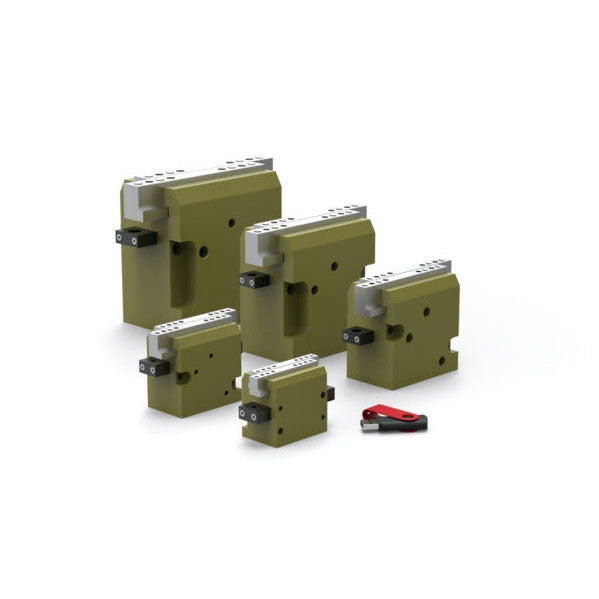

Range of two jaws parallel long stroke grippers with spring assist. Five models available. Total stroke varying from 20 to 60mm and force varying from 106Lbs[406N] to 521Lbs[2318N].

  • This compact gripper is used in confined spaces, combining long stroke with a high grip force
  • Standard spring allow the gripper to retain component in case of air failure
  • Inductive sensor holder mounted as standard
Product Imperial
Grip Force (N) 474
Grip Force (lbsf) 106
Stroke (mm) 20.0
Stroke (in) 0.787
Cylinder Bore (mm) 34
Cylinder Bore (in) 1.34
Pressure Range (psi) 45-100 psi
Temp Range Standard -35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton -30‚° to 150‚°C (-20‚° to 300‚°F)
Actuation (Open/Closed) (Sec) 0
Accuracy (‚±mm) 0.020
Repeatability (‚±mm) 0.010
Repeatability (‚±in) 0.001
Maximum Finger Length (mm) 64
Maximum Finger Length (in) 2.50
Product Type 2 Jaw Parallel
Direct Connect Yes
Special Feature Precision
Spring Assist Yes
Weight (kg) 0.35
Weight (lb) 0.77
Product Series Description 2-Jaw Parallel Gripper
Number of Jaws 2
Product Function Gripping
Product Family Grippers
Product Group Parallel Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
