Brand: DESTACO

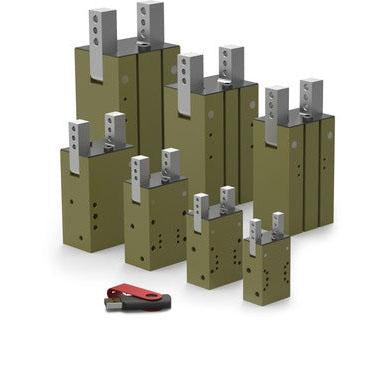

DESTACO DCT-12M 2 JAW ANGULAR 180 DEGREE GRIPPER
SKU: DE-STA-CO-DCT-12M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO DCT-12M 2 JAW ANGULAR 180 DEGREE GRIPPER offers versatile use with several add-ons, including adjustable stops and sensors, making it suitable for various tasks. Its full jaw opening (180°) eliminates any additional movement by the robot or actuator, allowing for direct feeding. The gripper can be mounted on the back of the body (sizes 12-25) or on top using DIRECTCONNECT and standard mounting options. Compact and efficient, this gripper is perfect for use in tight spaces. With a Metric Grip Force of 32N (7lbsf) and an opening angle of 180 degrees, it's the ideal tool for any job.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DCT-12M 2 JAW ANGULAR 180 DEGREE GRIPPER
Several accessories (adjustable stop, magneto resistive or inductive sensors) allow this gripper to be used in a number of applications.
- The full jaw opening (180°) means that the part can be direct fed, avoiding any release movement by the robot or by the actuator.
- DIRECTCONNECT mounting on back of body (sizes 12-25). Standard mounting on top.
- This gripper is designed for use in confined spaces.
| Product | Metric |
| Grip Force (N) | 32 |
| Grip Force (lbsf) | 7 |
| Opening Angle (deg) | 180 |
| Cylinder Bore (mm) | 12 |
| Cylinder Bore (in) | 0.47 |
| Opening Per Jaw (degrees) | 90 |
| Pressure Range (bar) | 3-7 |
| Pressure Range (psi) | 40-100 |
| Displacement (cm³) | 1.92 |
| Displacement (in³) | 0.117 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation Time (Open) (Sec) | 0.06 |
| Actuation Time (close) (Sec) | 0.60 |
| Accuracy (±mm) | 0.070 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.050 |
| Repeatability (±in) | 0.002 |
| Maximum Finger Length (mm) | 65 |
| Maximum Finger Length (in) | 2.50 |
| Protection Class | IP43 |
| Product Type | 2 Jaw Angular |
| Direct Connect | Yes |
| Special Feature | 180° Opening Angle |
| Spring Assist | No |
| Weight (kg) | 0.09 |
| Weight (lb) | 0.20 |
| Product Series Description | 2-Jaw Angular Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Angular Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
