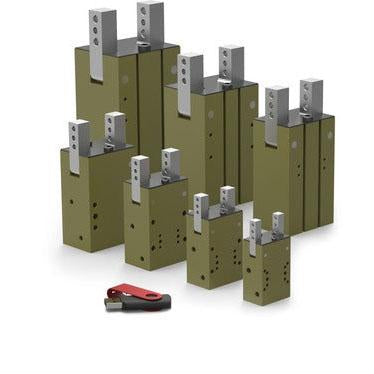

DESTACO CT-40M-RE 2 JAW ANGULAR 180 DEGREE GRIPPER
SKU: DE-STA-CO-CT-40M-RE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CT-40M-RE 2 JAW ANGULAR 180 DEGREE GRIPPER is ideal for various applications, with optional accessories such as an adjustable stop and sensors. Its full jaw opening of 180° allows for direct feeding without any extra movements from the robot or actuator. This gripper also includes fail-safe springs for increased grip force and is specifically designed for use in tight spaces. With a grip force of 592 N (133 lbsf) and a pressure range of 4-7 bar (60-100 psi), this gripper is highly efficient and reliable. Its compact size, with a cylinder bore of 40 mm (1.57 in) and displacement of 52.00 cm³ (3.173 in³), makes it a versatile and valuable addition to any workspace.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CT-40M-RE 2 JAW ANGULAR 180 DEGREE GRIPPER
Several accessories (adjustable stop, magneto resistive or inductive sensors) allow this gripper to be used in a number of applications.
- The full jaw opening (180°) means that the part can be direct fed, avoiding any release movement by the robot or by the actuator.
- Includes springs for fail-safe/increased grip force
- This gripper is designed for use in confined spaces.
| Product | Metric |
| Grip Force (N) | 592 |
| Grip Force (lbsf) | 133 |
| Opening Angle (deg) | 180 |
| Cylinder Bore (mm) | 40 |
| Cylinder Bore (in) | 1.57 |
| Opening Per Jaw (degrees) | 90 |
| Pressure Range (bar) | 4-7 |
| Pressure Range (psi) | 60-100 |
| Displacement (cm³) | 52.00 |
| Displacement (in³) | 3.173 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation Time (Open) (Sec) | 0.47 |
| Actuation Time (close) (Sec) | 0.38 |
| Accuracy (±mm) | 0.090 |
| Accuracy (±in) | 0.004 |
| Repeatability (±mm) | 0.050 |
| Repeatability (±in) | 0.002 |
| Maximum Finger Length (mm) | 178 |
| Maximum Finger Length (in) | 7.00 |
| Protection Class | IP43 |
| Product Type | 2 Jaw Angular |
| Special Feature | 180° Opening Angle |
| Spring Assist | Yes |
| Weight (kg) | 1.39 |
| Weight (lb) | 3.06 |
| Product Series Description | 2-Jaw Angular Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Angular Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
