Brand: DESTACO

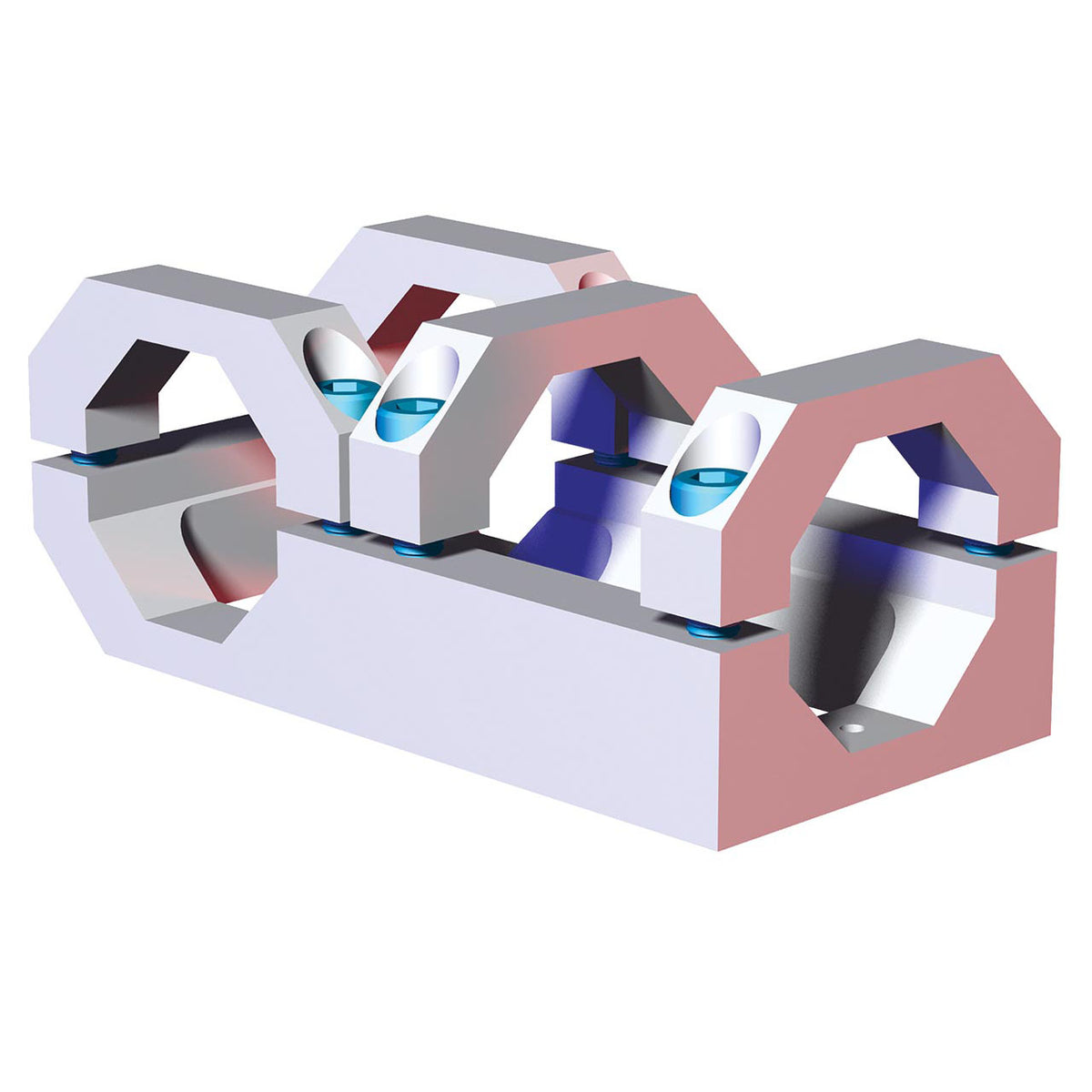

DESTACO CPI-TCA-60B-60B T-CLAMP - 60mm OCTAGON TO 60mm OCTAGON
SKU: DE-STA-CO-CPI-TCA-60B-60B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power of the DESTACO CPI-TCA-60B-60B T-CLAMP, an essential component for connecting two 60mm extrusions on the same plane. With its lightweight and robust aluminum design, this T-Clamp Bracket Assembly allows for a maximum static clamp load of 746 Nm (550 ft lbs). Enhance your automation, workholding, and containment solutions with DESTACO - the ultimate source for top-quality products.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TCA-60B-60B T-CLAMP - 60mm OCTAGON TO 60mm OCTAGON
T-Clamp Bracket Assembly connects (2) 60mm extrusions perpendicular to each other on the same plane. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Connects (2) 60mm octagon extrusions perpendicular on the same plane.
- Lightweight, high-strength aluminum design.
- Alignment nuts included
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 746 |
| Maximum Static Clamp Load (ft lb) | 550 |
| Product Type | T-Clamp |
| Tube Size | 60B / 60B |
| Weight (kg) | 1.77 |
| Weight (lb) | 3.90 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
| Tube Combinations (mm) | 60 / 60 |
| Tube Combinations (in) | 2.36 / 2.36 |
