Brand: DESTACO

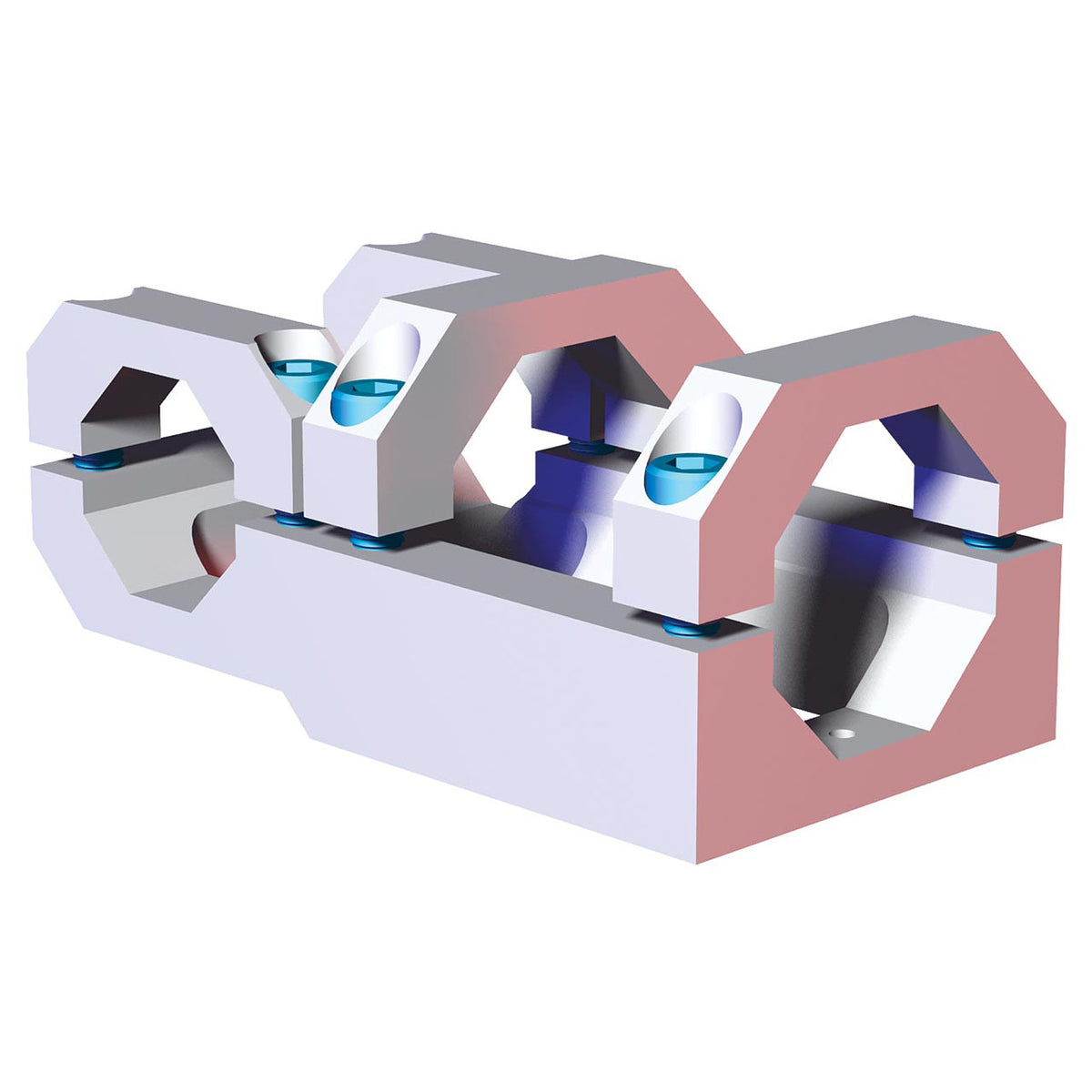

DESTACO CPI-TCA-60B-45B T-CLAMP - 60mm OCTAGON TO 45mm OCTAGON
SKU: DE-STA-CO-CPI-TCA-60B-45B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the ultimate solution for connecting 60mm and 45mm extrusions on the same plane with the DESTACO CPI-TCA-60B-45B T-CLAMP. This high-performance T-Clamp Bracket Assembly boasts a lightweight, yet strong aluminum design and includes alignment nuts for added convenience. Whether you're automating, workholding, or containing, this product is a must-have in your toolkit. With a maximum static clamp load of 746 Nm or 550 ft lb, you can trust this T-Clamp to securely hold your materials in place. Trust DESTACO to deliver superior quality and functionality.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TCA-60B-45B T-CLAMP - 60mm OCTAGON TO 45mm OCTAGON
T-Clamp Bracket Assembly connects 60mm and 45mm extrusions perpendicular to each other on the same plane. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Connects 60mm and 45mm octagon extrusion perpendicular on the same plane.
- Lightweight, high-strength aluminum design.
- Alignment nuts included
| Tube Diameter (mm) | 60, 45 |
| Tube Diameter (in) | 2.36, 1.77 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 746 |
| Maximum Static Clamp Load (ft lb) | 550 |
| Product Type | T-Clamp |
| Tube Size | 60B / 45B |
| Weight (kg) | 1.45 |
| Weight (lb) | 3.20 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
| Tube Combinations (mm) | 60 / 45 |
| Tube Combinations (in) | 2.36 / 1.77 |
