Brand: DESTACO

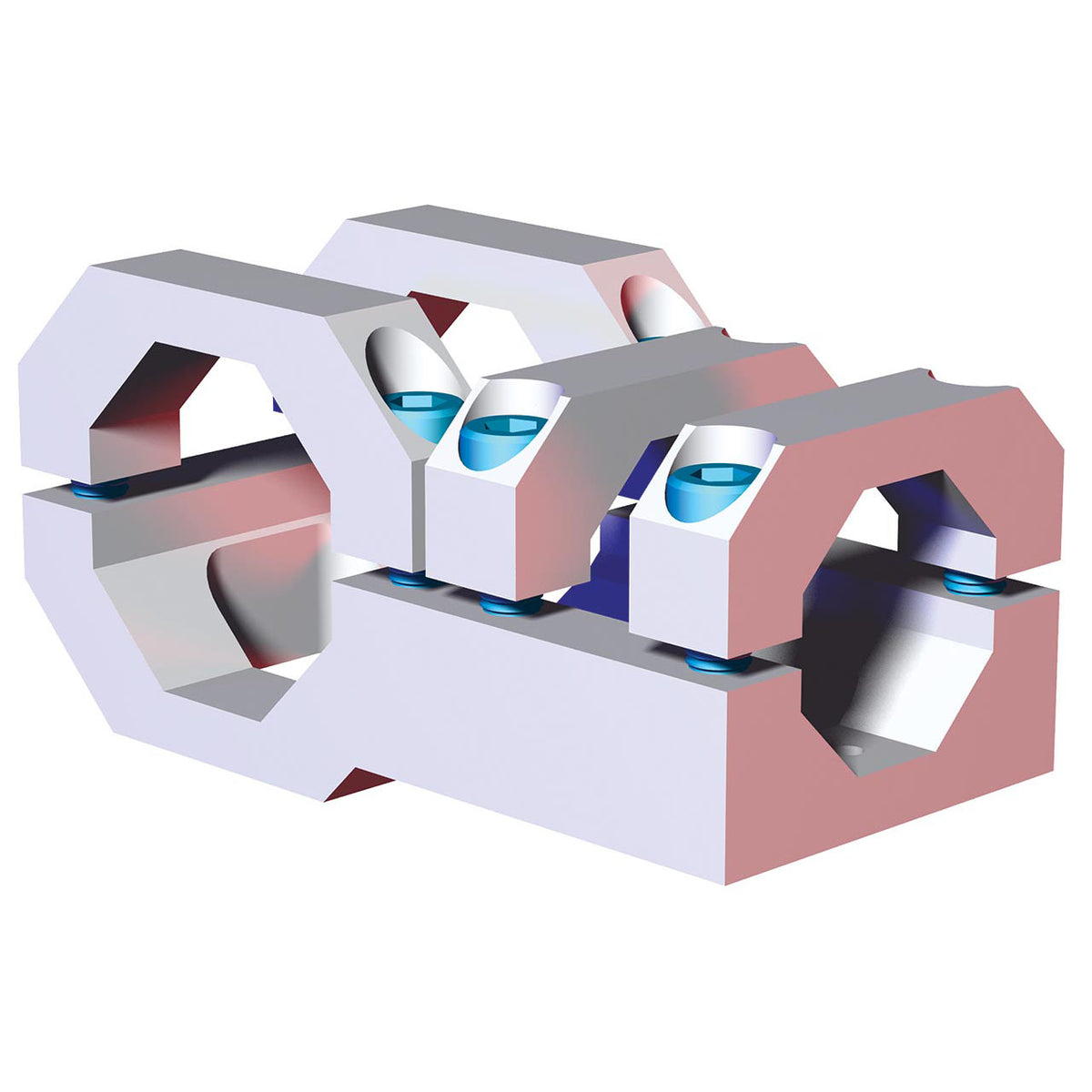

DESTACO CPI-TCA-45B-60B T-CLAMP - 45mm OCTAGON TO 60mm OCTAGON
SKU: DE-STA-CO-CPI-TCA-45B-60B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-TCA-45B-60B T-CLAMP! This innovative T-Clamp Bracket Assembly effortlessly connects 45mm and 60mm extrusions, providing unmatched strength and stability in any automation, workholding, or containment setting. Made of lightweight aluminum, it ensures seamless alignment thanks to the included alignment nuts. Don't settle for less, upgrade to the high-performance and versatile T-Clamp today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TCA-45B-60B T-CLAMP - 45mm OCTAGON TO 60mm OCTAGON
T-Clamp Bracket Assembly connects 45mm and 60mm extrusions perpendicular to each other on the same plane. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Connects 45 mm and 60 mm octagon extrusion perpendicular on the same plane
- Lightweight, high-strength aluminum design.
- Alignment nuts included
| Tube Diameter (mm) | 45, 60 |
| Tube Diameter (in) | 1.77, 2.36 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 746 |
| Maximum Static Clamp Load (ft lb) | 550 |
| Product Type | T-Clamp |
| Tube Size | 45B / 60B |
| Weight (kg) | 1.21 |
| Weight (lb) | 2.70 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
| Tube Combinations (mm) | 45 / 60 |
| Tube Combinations (in) | 1.77 / 2.36 |
