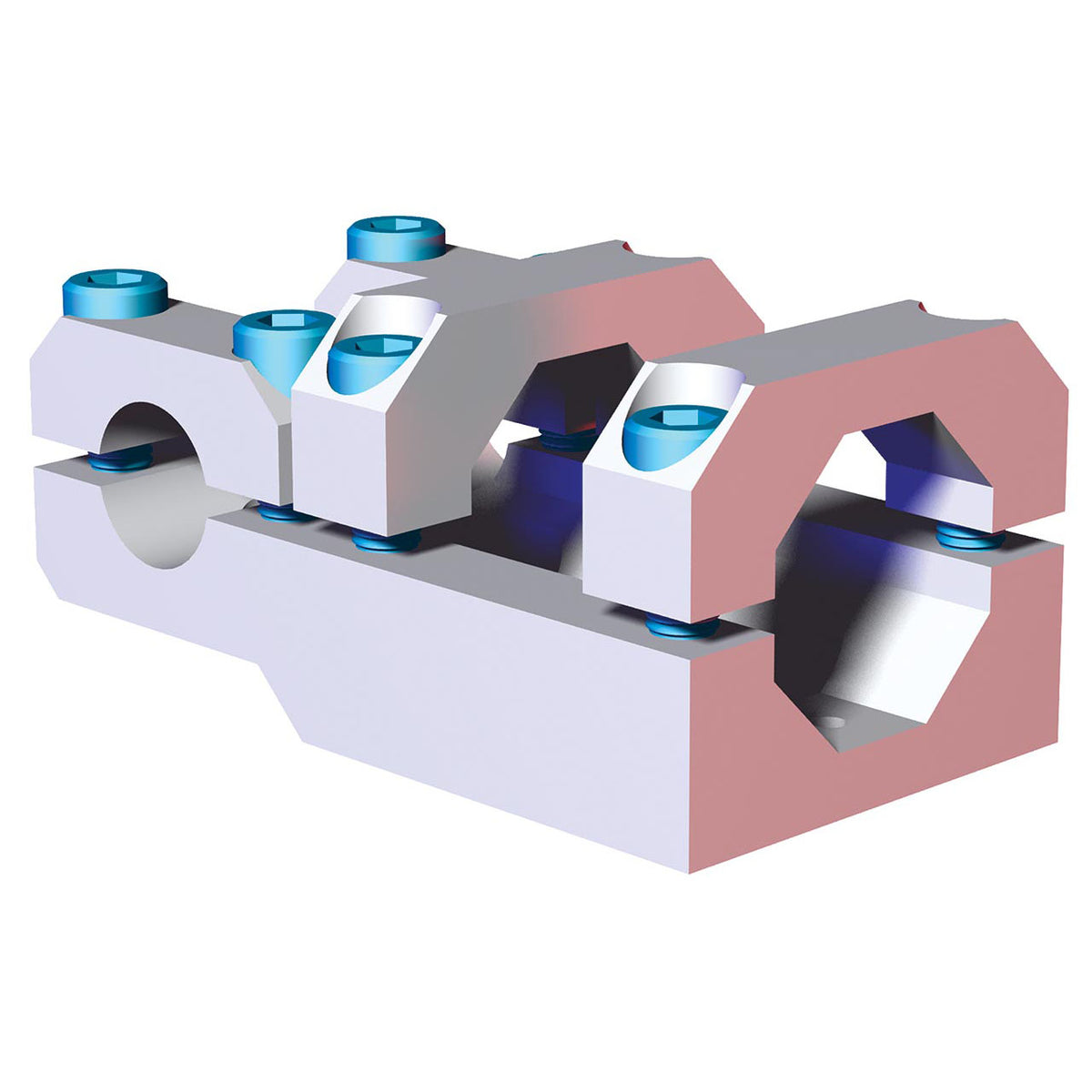

DESTACO CPI-TCA-45B-30B T-CLAMP - 45mm OCTAGON TO 30mm OCTAGON
SKU: DE-STA-CO-CPI-TCA-45B-30B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-TCA-45B-30B T-CLAMP - 45mm OCTAGON TO 30mm OCTAGON is a high-performance bracket assembly designed to connect 45mm and 30mm extrusions at a right angle on a single plane. Featuring a lightweight and durable aluminum design, this product from Destaco is perfect for a variety of automation, workholding, and containment solutions. With the included alignment nuts, securing tubes with a diameter of 45mm and 30mm is easy and reliable. Boasting a maximum static clamp load of 475 Nm or 350 ft lb, this T-Clamp is sure to meet your needs. Upgrade your setup with this top-of-the-line product from Destaco.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TCA-45B-30B T-CLAMP - 45mm OCTAGON TO 30mm OCTAGON
T-Clamp Bracket Assembly connects 45mm and 30mm extrusions perpendicular to each other on the same plane. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Connects 45mm and 30mm octagon extrusion perpendicular on the same plane
- Lightweight, high-strength aluminum design.
- Alignment nuts included
| Tube Diameter (mm) | 45, 30 |
| Tube Diameter (in) | 1.77, 1.18 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 475 |
| Maximum Static Clamp Load (ft lb) | 350 |
| Product Type | T-Clamp |
| Tube Size | 45B / 30B |
| Weight (kg) | 0.91 |
| Weight (lb) | 2.00 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
| Tube Combinations (mm) | 45 / 30 |
| Tube Combinations (in) | 1.77 / 1.18 |
