Brand: DESTACO

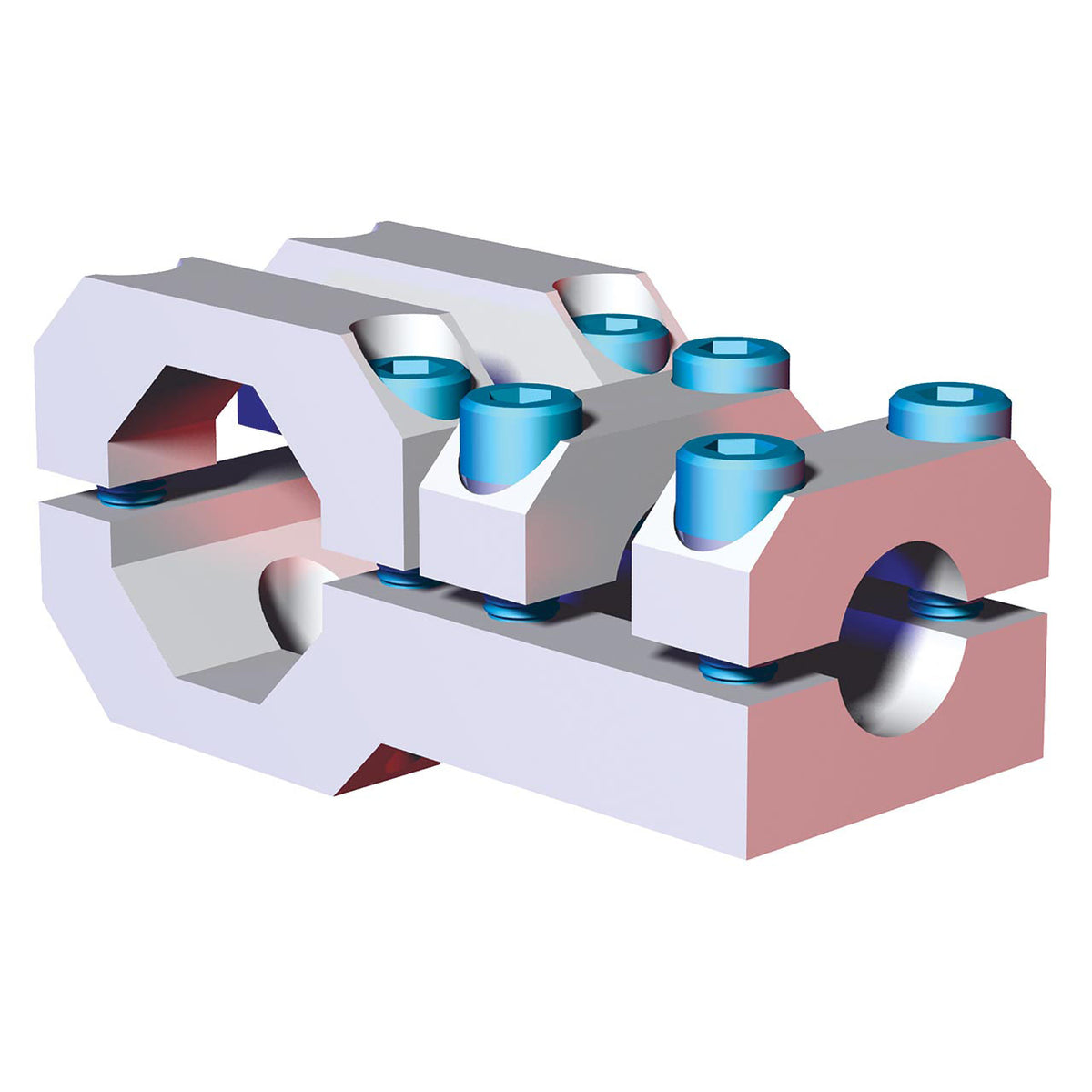

DESTACO CPI-TCA-25M-45B T-CLAMP - 25mm ROUND TO 45mm OCTAGON
SKU: DE-STA-CO-CPI-TCA-25M-45B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-TCA-25M-45B T-CLAMP connects 25mm Round and 60mm Octagon in a perpendicular fashion on the same plane. Made from lightweight, high-strength aluminum, this T-Clamp is designed for added stability and can also function as a connector between booms. It comes with alignment nuts and has a maximum static clamp load of 475 Nm (350 ft lbs). Upgrade your projects with this versatile T-Clamp assembly!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TCA-25M-45B T-CLAMP - 25mm ROUND TO 45mm OCTAGON
T-Clamp Bracket Assembly connects 25mm Round and 60mm Octagon perpendicular to each other on the same plane.
- Connects 25mm round and 45mm octagon perpendicular on the same plane
- Lightweight, high-strength aluminum design.
- Can be configured as a connector between booms for added stability
- Alignment nuts included
| Tube Diameter (mm) | 25, 45 |
| Tube Diameter (in) | 0.98, 1.77 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 475 |
| Maximum Static Clamp Load (ft lb) | 350 |
| Product Type | T-Clamp |
| Tube Size | 25 mm / 45B |
| Weight (kg) | 0.57 |
| Weight (lb) | 1.30 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
| Tube Combinations (mm) | 25 / 45 |
| Tube Combinations (in) | 0.98 / 1.77 |
