Brand: DESTACO

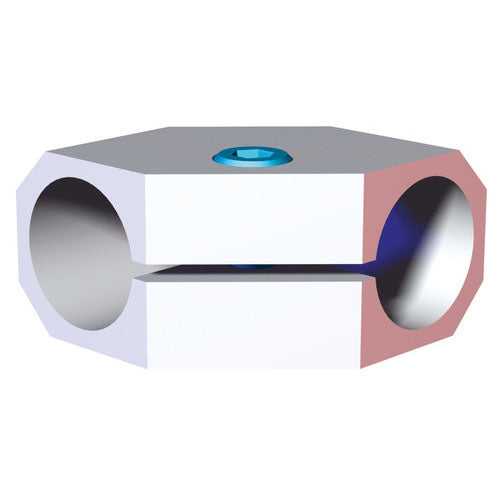

DESTACO CPI-SECM-7550 WRIST CLAMP 3/4in. TO 1/2in. ASSEMBLY
SKU: DE-STA-CO-CPI-SECM-7550
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Elevate your automation, workholding, and containment solutions with DESTACO CPI-SECM-7550 WRIST CLAMP! This high-performance assembly effortlessly secures 0.75-inch tubes to 0.50-inch tubes, with a maximum static clamp load of 10.8 Nm and 8 ft lb. Made of durable aluminum, it is designed for lasting strength and precision. Don't settle for less - choose the reliable and dynamic DESTACO Wrist Clamp for your next project!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-SECM-7550 WRIST CLAMP 3/4in. TO 1/2in. ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Wrist Clamp for 0.75" tube to 0.50" tube
| Tube Diameter (mm) | 12.7, 19 |
| Tube Diameter (in) | 0.50, 0.75 |
| Material | Aluminum |
| Max Static Clamp Load 1 (Nm) | 10.8 |
| Max Static Clamp Load 1 (ft lb) | 8 |
| Max Static Clamp Load 2 (Nm) | 10.8 |
| Max Static Clamp Load 2 (ft lb) | 8 |
| Product Type | Wrist Clamp |
| Tube Size | 0.75 in / 0.50 in |
| Weight (kg) | 0.05 |
| Weight (lb) | 0.12 |
| Product Series Description | Clamp Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Tube Combinations (mm) | 19 / 12.7 |
| Tube Combinations (in) | 0.75 / 0.50 |
