Brand: DESTACO

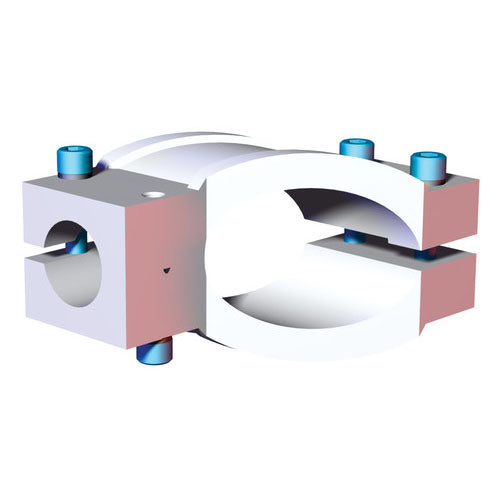

DESTACO CPI-SEC-2515 WRIST CLAMP EXT 2.5in. X 1.5in. DIA

SKU: DE-STA-CO-CPI-SEC-2515
MPN: CPI-SEC-2515

$611.37
Unit price per
Save $70.67

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-SEC-2515 WRIST CLAMP EXT 2.5in. X 1.5in. DIA offers high-performance automation, workholding, and containment solutions. Designed for 2.50" and 1.50" tubes, this wrist clamp boasts a sturdy aluminum construction and can handle a maximum static clamp load of 677.0 Nm or 500 ft lb on one end and 271.0 Nm or 200 ft lb on the other. Improve your production efficiency with this top-quality wrist clamp!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-SEC-2515 WRIST CLAMP EXT 2.5in. X 1.5in. DIA

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Wrist clamp for 2.50" tube to 1.50" tube

Tube Diameter (mm)	63.5, 38.1
Tube Diameter (in)	2.50, 1.50
Material	Aluminum
Max Static Clamp Load 1 (Nm)	677.0
Max Static Clamp Load 1 (ft lb)	500
Max Static Clamp Load 2 (Nm)	271.0
Max Static Clamp Load 2 (ft lb)	200
Product Type	Wrist Clamp
Tube Size	2.50 in / 1.50 in
Weight (kg)	1.23
Weight (lb)	2.72
Product Series Description	Clamp Block
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
Tube Combinations (mm)	63.5 / 38.1
Tube Combinations (in)	2.50 / 1.50
