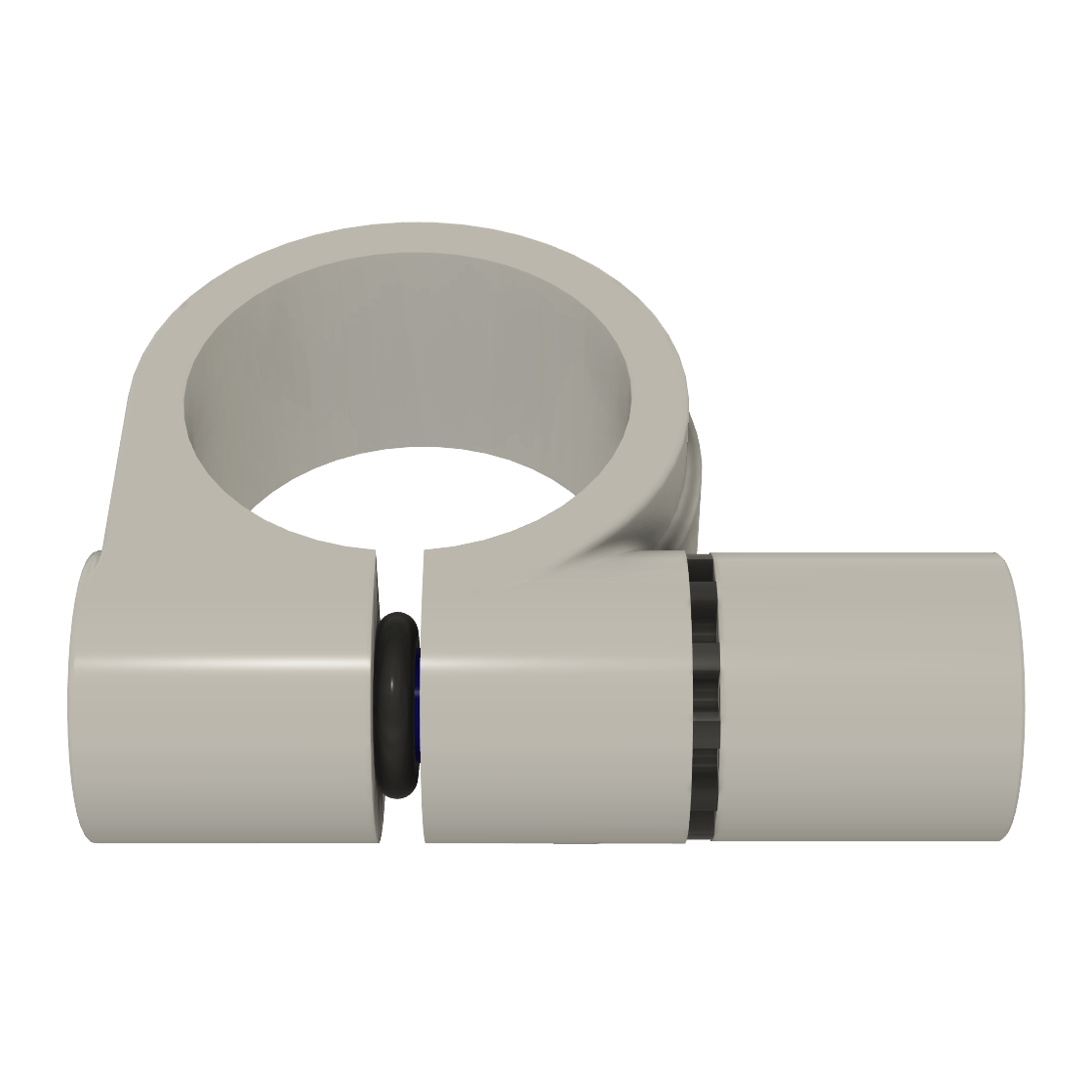

DESTACO CPI-ES25-40-50 SINGLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ES25-40-50
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES25-40-50 Single End Extension Arm Assembly is designed for versatile automation and tooling applications. It facilitates the connection of 25 mm rod ends to 40 mm (1.57 in) round tubes, providing extended mounting capabilities with 360° rotational adjustment for precise alignment. Measuring 50 mm (1.970 in) in length, this extension arm is made from durable aluminum with a protective blue finish. It is engineered to withstand a maximum static clamp load of 271 Nm (200 ft-lb), making it a robust solution for industrial workholding and containment needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES25-40-50 SINGLE END EXTENSION ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 25 mm rod end extension mounts to 40 mm round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 40 |
| Tube Diameter (in) | 1.57 |
| Length (mm) | 50.0 |
| Length (in) | 1.970 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 40 mm |
| Weight (kg) | 0.17 |
| Weight (lb) | 0.37 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
