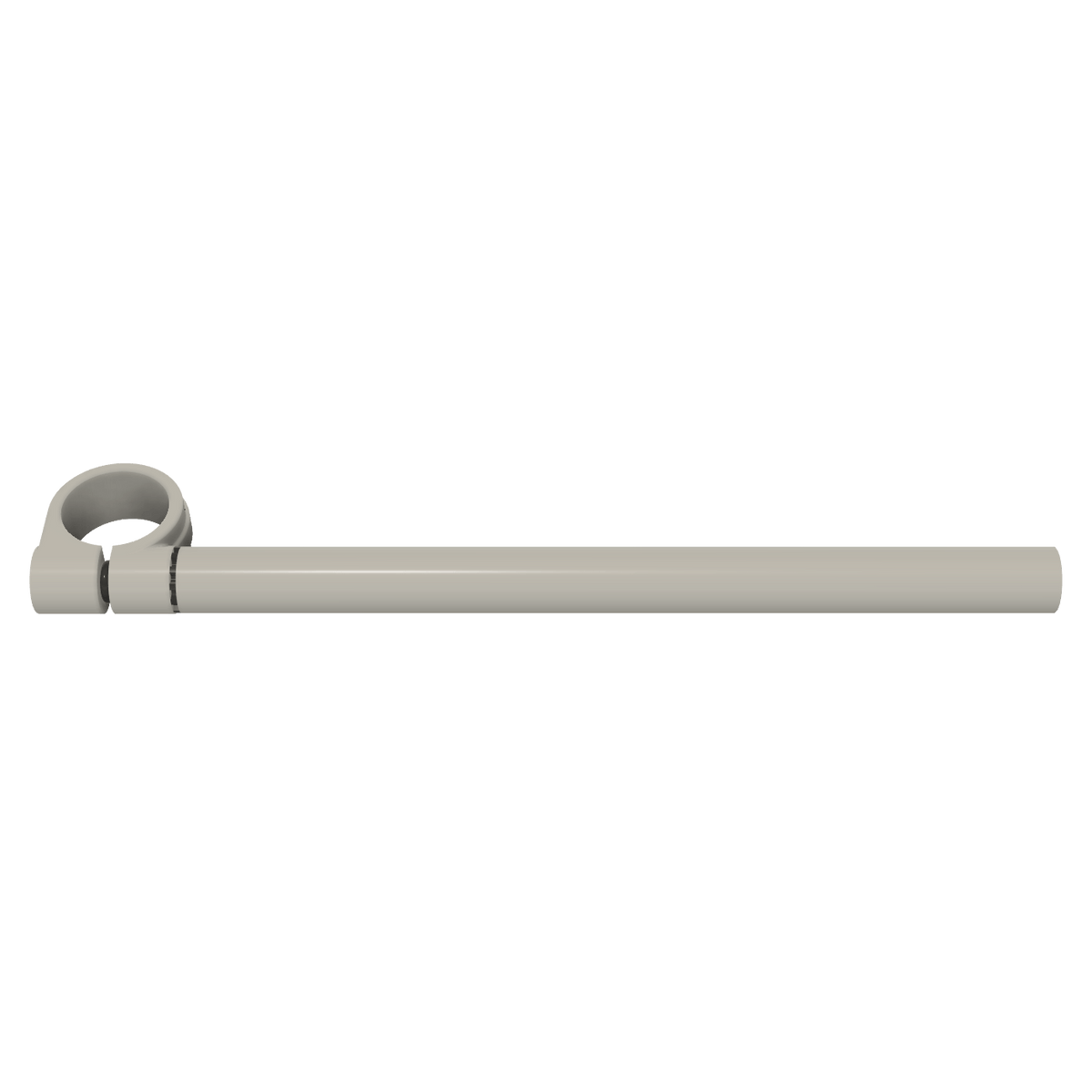

DESTACO CPI-ES25-40-350 SINGLE END EXTENSION ARM ASSEMBLY

Brand: DESTACO

DESTACO CPI-ES25-40-350 SINGLE END EXTENSION ARM ASSEMBLY

SKU: DE-STA-CO-CPI-ES25-40-350
MPN: CPI-ES25-40-350

  • $76.11
    Unit price per
  • Save $8.79
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-ES25-40-350 Single End Extension Arm Assembly offers a versatile and robust solution for high-performance automation and tooling systems. Designed to connect 25 mm rod ends to 40 mm (1.57 in) round tubes, it enables extended mounting flexibility. The arm provides 360° rotational adjustment along a single axis for precise positioning. With a length of 350 mm (13.780 in), it is crafted from durable aluminum and features a protective blue finish. Capable of handling a maximum static clamp load of 271 Nm (200 ft-lb), this extension arm ensures dependable performance in industrial applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-ES25-40-350 SINGLE END EXTENSION ARM ASSEMBLY

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • 25 mm rod end extension mounts to 40 mm round tube for extended mounting options
  • Provides 360° of rotational adjustments along a single axis
Tube Diameter (mm) 40
Tube Diameter (in) 1.57
Length (mm) 350.0
Length (in) 13.780
Material Aluminum
Finish Blue
Maximum Static Clamp Load (Nm) 271
Maximum Static Clamp Load (ft lb) 200
Product Type Single End Extensions
Tube Size 40 mm
Weight (kg) 0.54
Weight (lb) 1.18
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group round tooling
