Brand: DESTACO

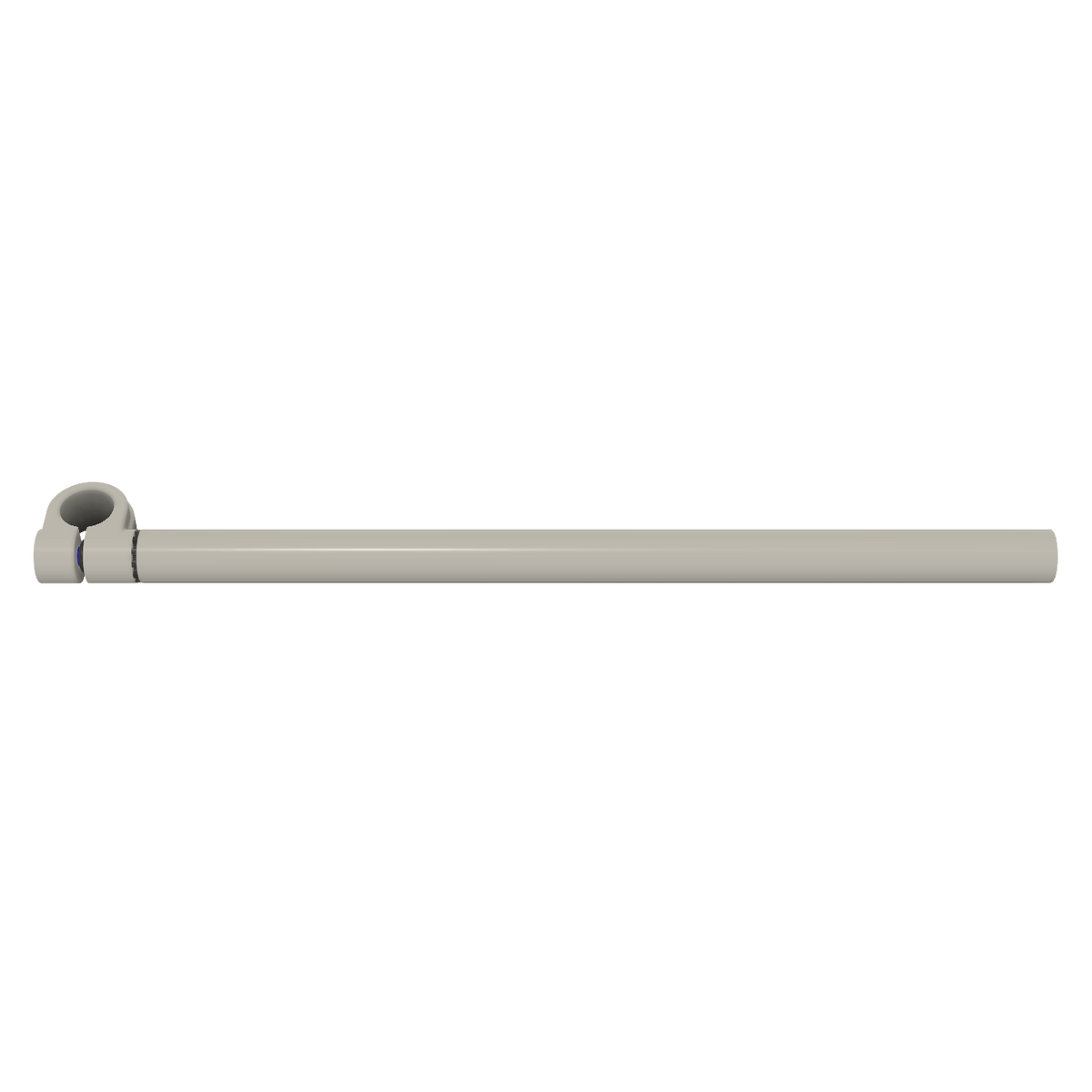

DESTACO CPI-ES25-25-400 SINGLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ES25-25-400
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES25-25-400 Single End Extension Arm Assembly is a versatile solution for automation, workholding, and containment tasks. Designed to fit 25 mm (0.98 in) round tubes, it offers extended mounting capabilities with a 400 mm (15.750 in) length. Its 360° rotational adjustment along a single axis ensures precise and adaptable positioning for various applications. Made from durable aluminum with a sleek blue finish, it withstands up to 271 Nm (200 ft-lb) of static clamp load. This robust and flexible tool is ideal for enhancing the efficiency and adaptability of industrial setups.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES25-25-400 SINGLE END EXTENSION ARM ASSEMBLY
Swivel Arm, Single End Extensions for Round Tooling
- 25 mm rod end extension mounts to 25 mm round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Length (mm) | 400.0 |
| Length (in) | 15.750 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 25 mm |
| Weight (kg) | 0.59 |
| Weight (lb) | 1.29 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
