Brand: DESTACO

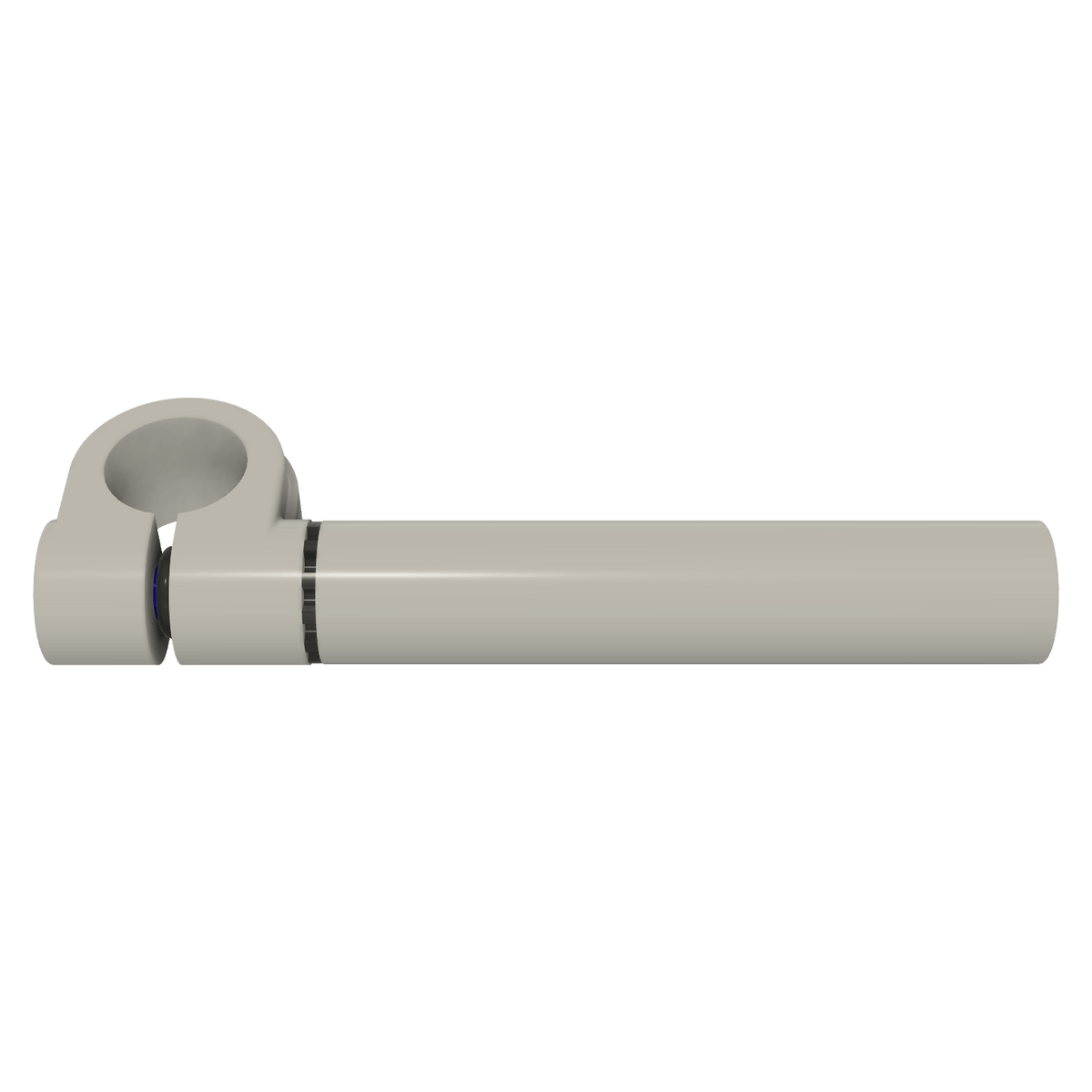

DESTACO CPI-ES25-25-100 SINGLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ES25-25-100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES25-25-100 Single End Extension Arm Assembly is designed for high-performance automation, workholding, and containment applications. It features a 25 mm (0.98 in) rod end that mounts to a 25 mm round tube, providing extended mounting flexibility. The arm allows 360° rotational adjustments along a single axis for versatile positioning. Crafted from durable aluminum with a striking blue finish, it offers both strength and visibility. With a length of 100 mm (3.94 in) and a maximum static clamp load of 271 Nm (200 ft-lb), it is suitable for various industrial tasks. This product delivers reliable performance and enhances operational efficiency in demanding environments.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES25-25-100 SINGLE END EXTENSION ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 25 mm rod end extension mounts to 25 mm round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Length (mm) | 100.0 |
| Length (in) | 3.940 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 25 mm |
| Weight (kg) | 0.22 |
| Weight (lb) | 0.48 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
