Brand: DESTACO

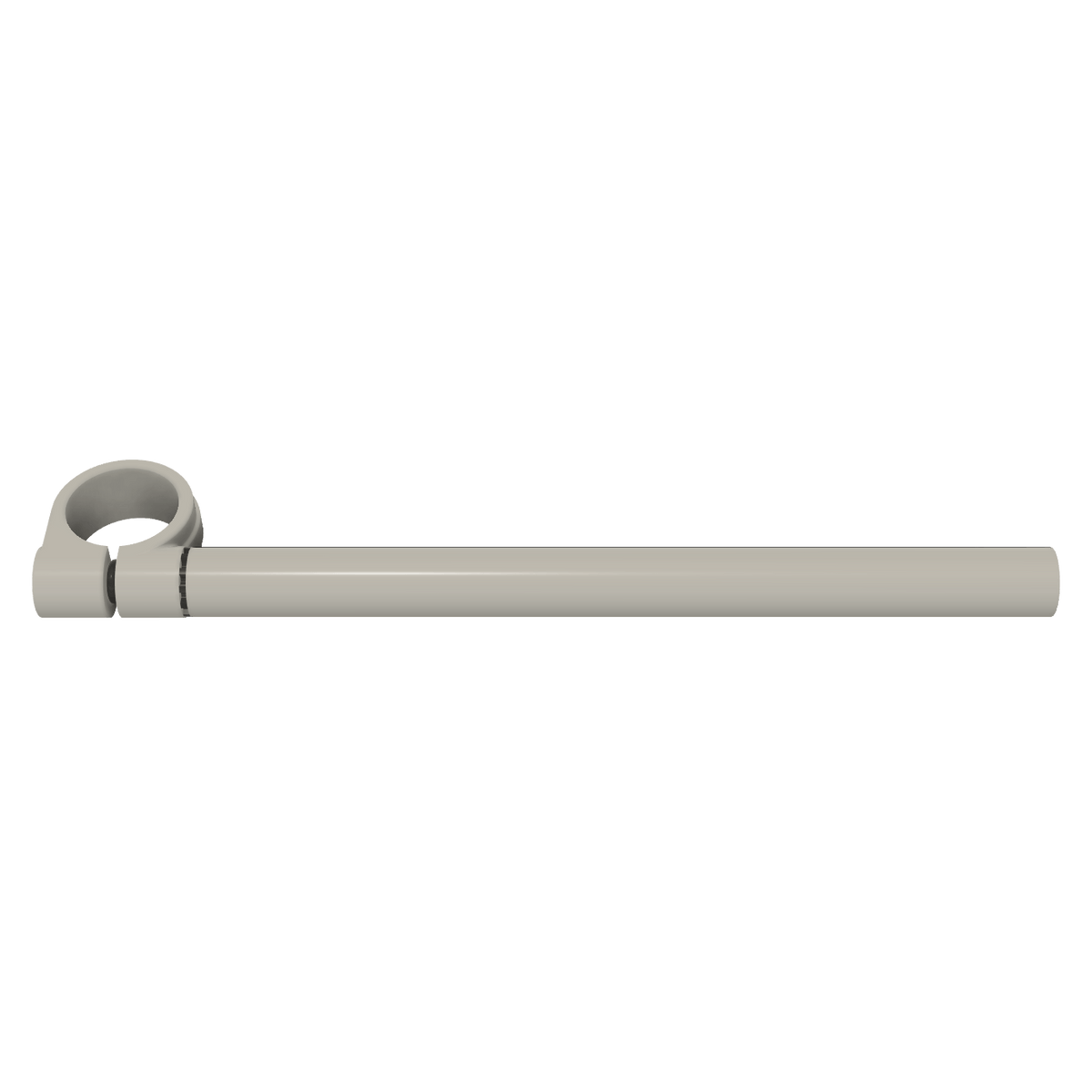

DESTACO CPI-ES10-150-13 SINGLE END 1.5in. DIA BORE 13in. L
SKU: DE-STA-CO-CPI-ES10-150-13
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the superior quality and performance of DESTACO's CPI-ES10-150-13 SINGLE END 1.5in. DIA BORE 13in. L Catalog! Our high-performance automation, workholding, and containment solutions provide unparalleled value and efficiency. With its 1.00" rod end extension and 360-degree rotational adjustments, this product offers extended mounting options and maximum static clamp load of 271 Nm (200 ft lb). Made with top-of-the-line aluminum and finished in sleek silver, our single end extension is the perfect choice for your industrial needs. Discover the benefits and possibilities with DESTACO today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES10-150-13 SINGLE END 1.5in. DIA BORE 13in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 1.00" rod end extension mounts to 1.50" round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 38.1 |
| Tube Diameter (in) | 1.50 |
| Length (mm) | 330.2 |
| Length (in) | 13.000 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 1.50 in |
| Weight (kg) | 0.52 |
| Weight (lb) | 1.14 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
