Brand: DESTACO

DESTACO CPI-ES10-150-09 SINGLE END 1.5in. DIA BORE 9in. L

SKU: DE-STA-CO-CPI-ES10-150-09
MPN: CPI-ES10-150-09

$48.30
Unit price per
Save $5.58

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

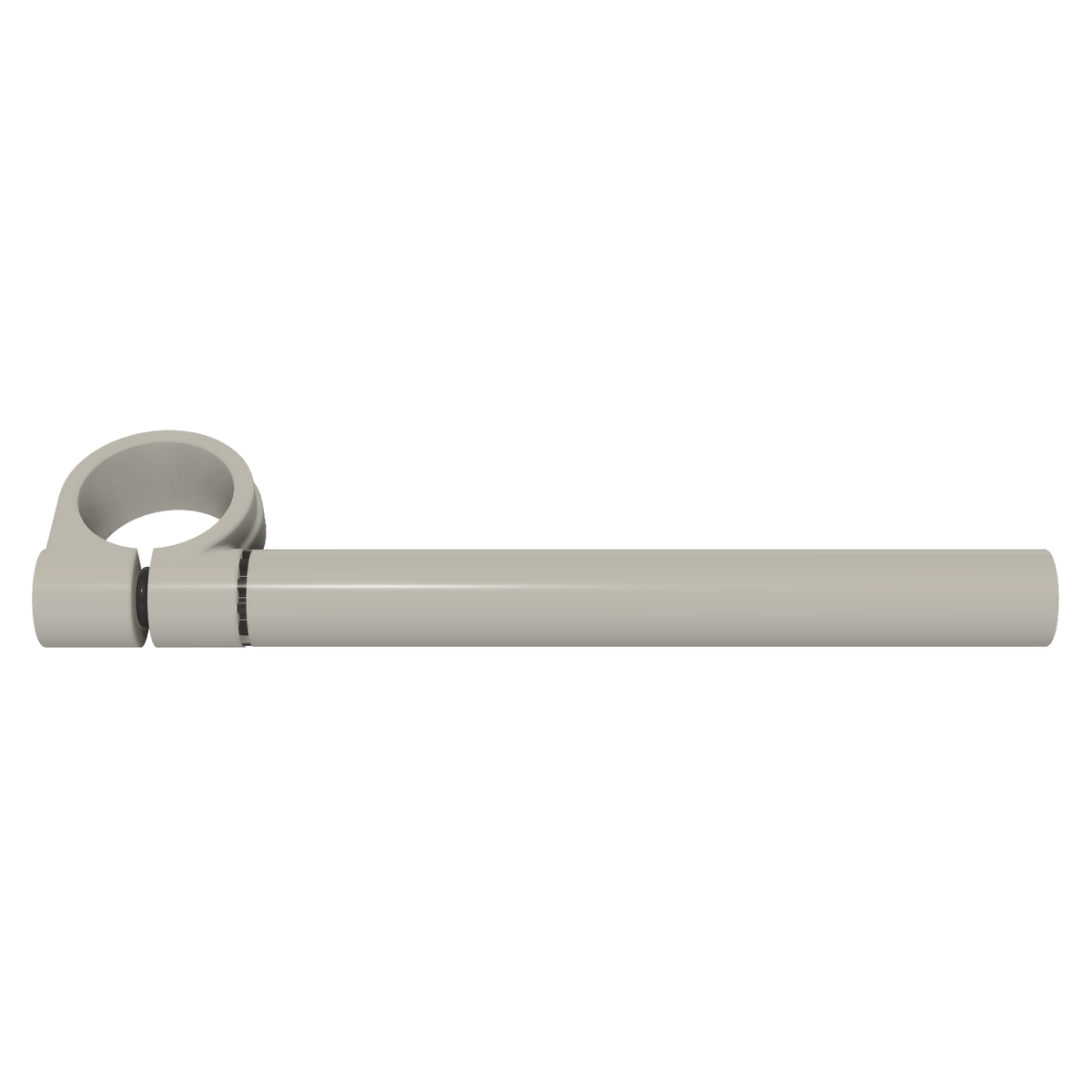

The DESTACO CPI-ES10-150-09 Single End Extension is designed for high-performance automation and tooling applications. It connects a 1.00" rod end to a 1.50" (38.1 mm) round tube, providing flexibility with 360° rotational adjustments along a single axis. With a length of 228.6 mm (9.000 in), it is constructed from durable aluminum with a corrosion-resistant silver finish. The extension supports a maximum static clamp load of 271 Nm (200 ft-lb), making it suitable for demanding industrial tasks requiring reliable and adjustable tooling setups.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-ES10-150-09 SINGLE END 1.5in. DIA BORE 9in. L

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

1.00" rod end extension mounts to 1.50" round tube for extended mounting options
Provides 360° of rotational adjustments along a single axis

Tube Diameter (mm)	38.1
Tube Diameter (in)	1.50
Length (mm)	228.6
Length (in)	9.000
Material	Aluminum
Finish	Silver
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Single End Extensions
Tube Size	1.50 in
Weight (kg)	0.40
Weight (lb)	0.87
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
