Brand: DESTACO

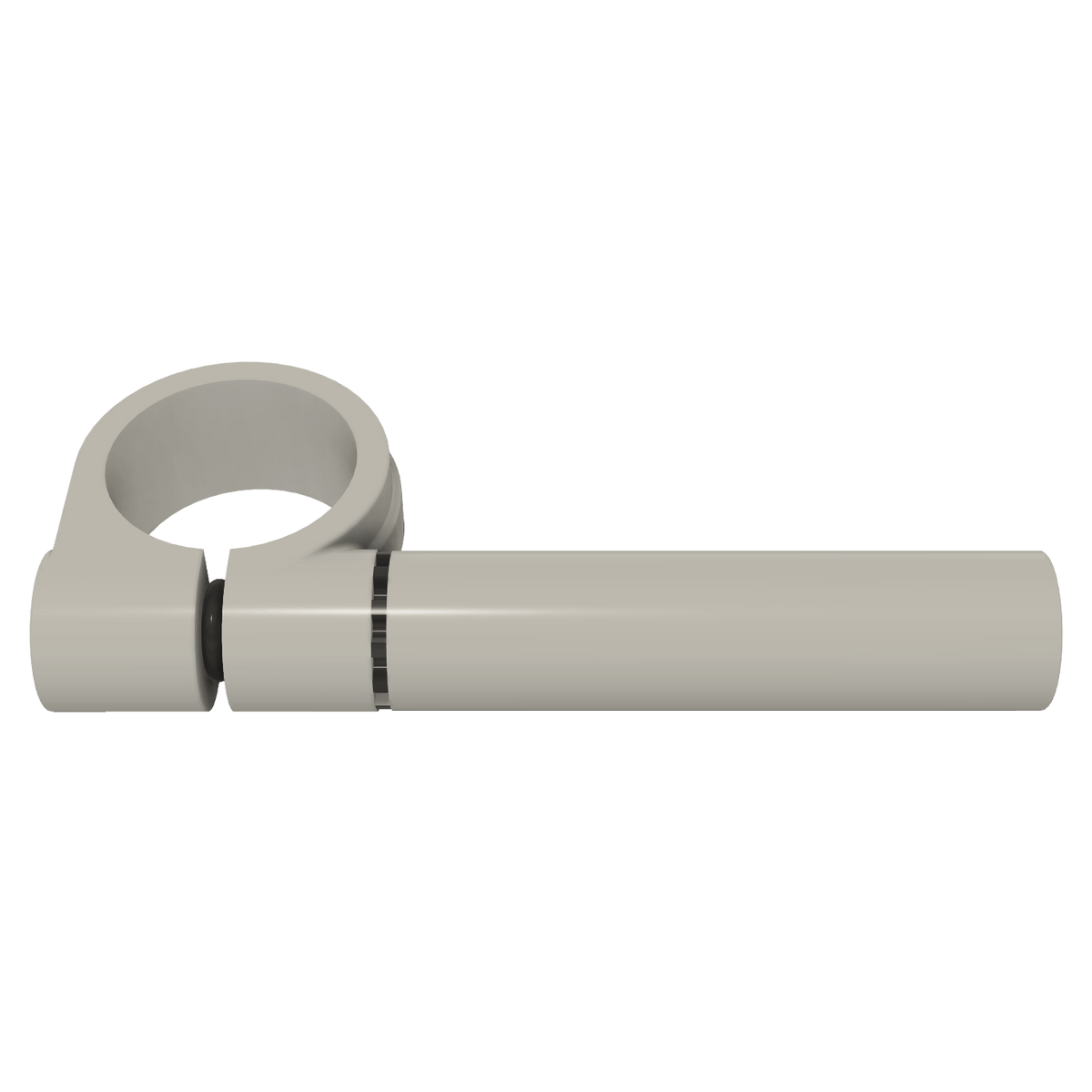

DESTACO CPI-ES10-150-05 SINGLE END 1.5in.DIA BORE 5in. L
SKU: DE-STA-CO-CPI-ES10-150-05
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES10-150-05 Single End Extension is designed for precision and versatility in automation and tooling applications. It connects a 1.00" rod end to a 1.50" (38.1 mm) round tube, providing enhanced mounting options. This extension allows 360° rotational adjustments along a single axis for flexible positioning. Measuring 127.0 mm (5.000 in) in length, it is constructed from high-quality aluminum with a silver finish, ensuring durability and corrosion resistance. With a maximum static clamp load of 271 Nm (200 ft-lb), it offers reliable performance for demanding industrial setups. Perfect for extending and customizing tooling configurations, it supports high-performance operations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES10-150-05 SINGLE END 1.5in.DIA BORE 5in. L
Swivel Arm, Single End Extensions for Round Tooling
- 1.00" rod end extension mounts to 1.50" round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 38.1 |
| Tube Diameter (in) | 1.50 |
| Length (mm) | 127.0 |
| Length (in) | 5.000 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 1.50 in |
| Weight (kg) | 0.27 |
| Weight (lb) | 0.60 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
