Brand: DESTACO

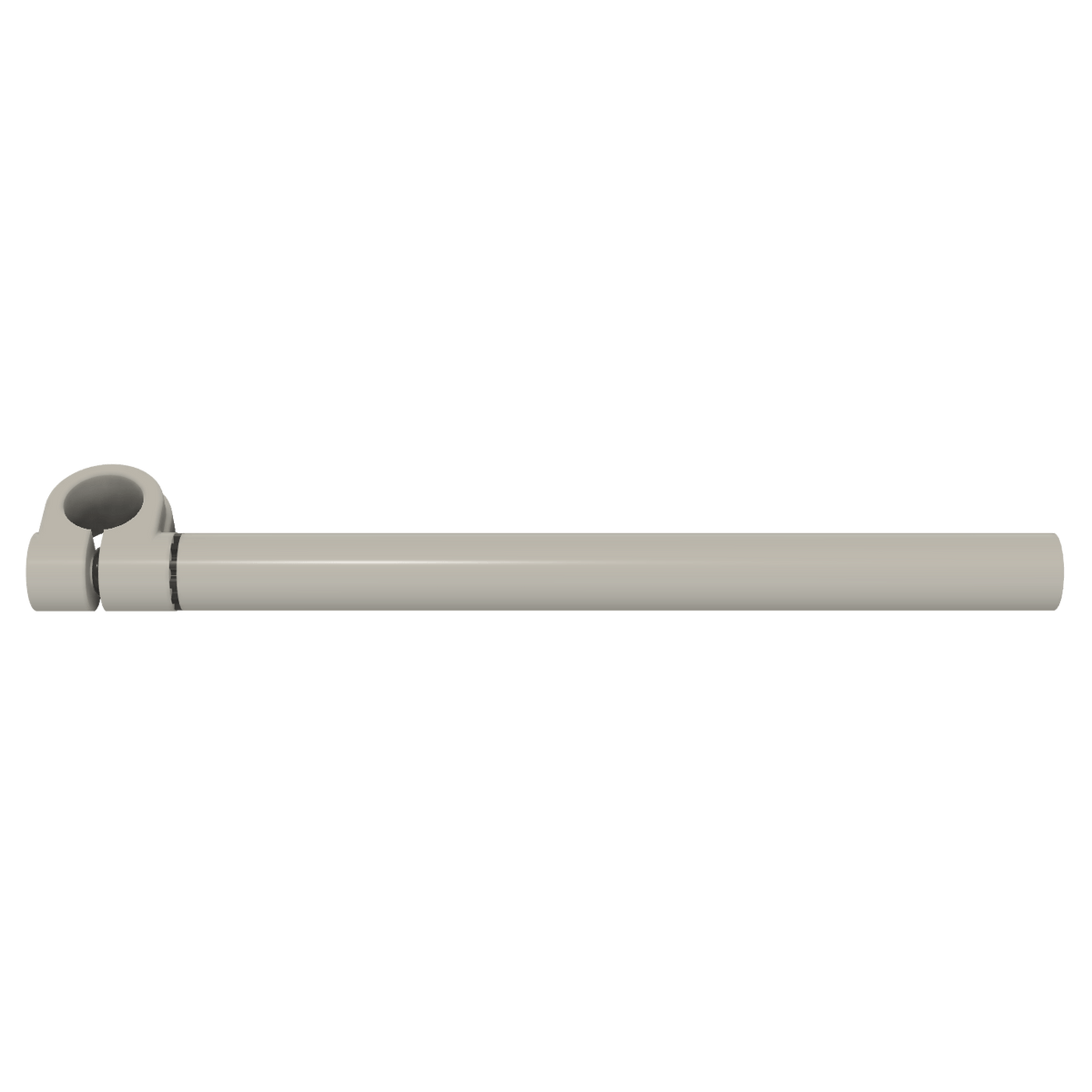

DESTACO CPI-ES10-100-11 SINGLE END 1in. DIA BORE 11in. L

SKU: DE-STA-CO-CPI-ES10-100-11
MPN: CPI-ES10-100-11

$46.49
Unit price per
Save $5.37

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-ES10-100-11 Single End Swivel Arm provides flexible and reliable mounting for automation systems. It connects a 1.00" diameter rod to a 1.00" (25.4 mm) round tube, offering 360° rotational adjustments along a single axis. With a length of 279.4 mm (11.000 in), this extension is suitable for applications requiring extra reach. Made of durable aluminum with a silver finish, it supports a maximum static clamp load of 271 Nm (200 ft-lb), ensuring strong and stable operation in demanding environments. It's ideal for extending the functionality of workholding and automation tooling systems.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-ES10-100-11 SINGLE END 1in. DIA BORE 11in. L

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

1.00" rod end extension mounts to 1.00" round tube for extended mounting options
Provides 360° of rotational adjustments along a single axis

Tube Diameter (mm)	25.4
Tube Diameter (in)	1.00
Length (mm)	279.4
Length (in)	11.000
Material	Aluminum
Finish	Silver
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Single End Extensions
Tube Size	1.00 in
Weight (kg)	0.44
Weight (lb)	0.96
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
