Brand: DESTACO

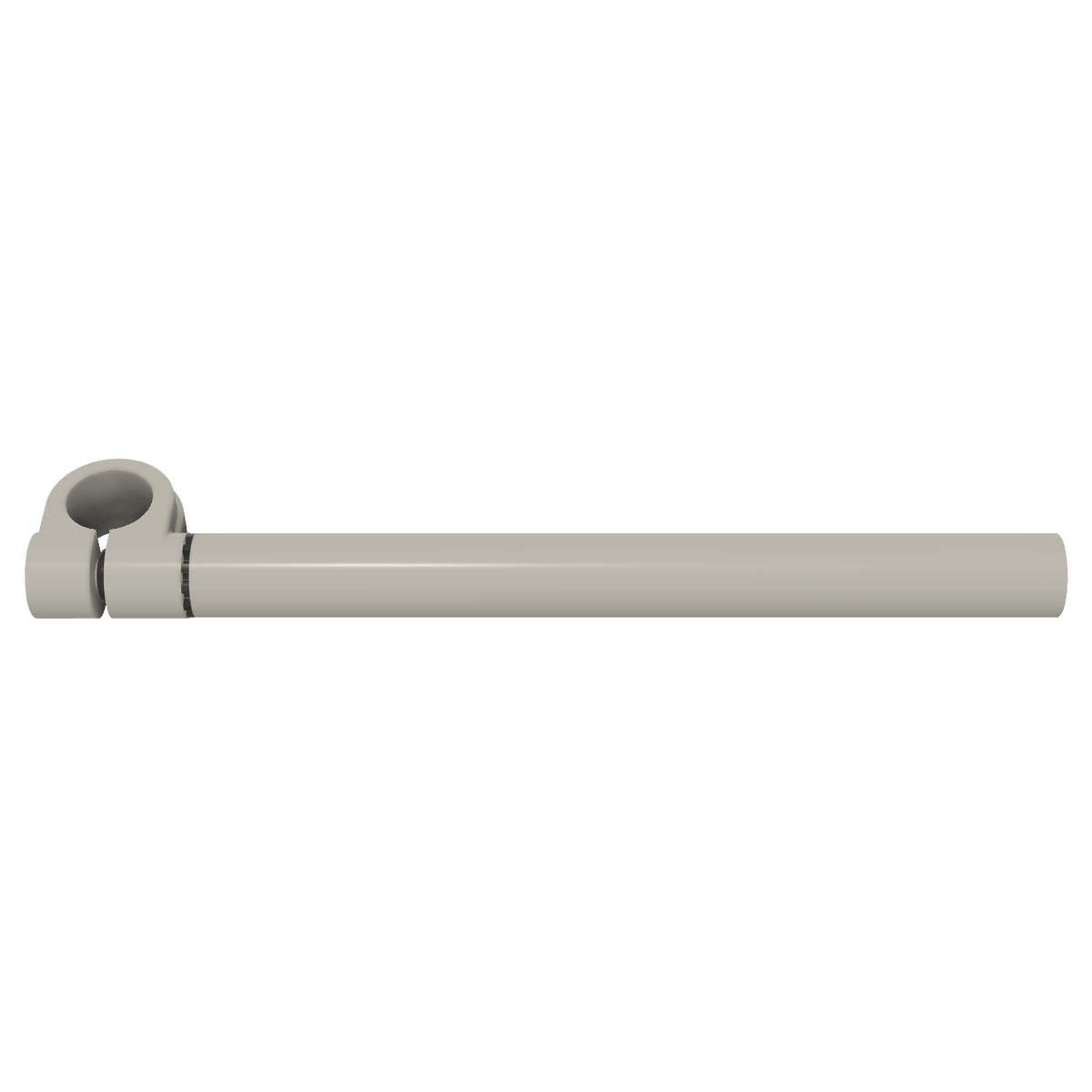

DESTACO CPI-ES10-100-10 SINGLE END 1in. DIA BORE 10in. L
SKU: DE-STA-CO-CPI-ES10-100-10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES10-100-10 Single End Swivel Arm is designed for precise and flexible mounting in automation setups. It connects a 1.00" diameter rod to a 1.00" (25.4 mm) round tube, allowing 360° of rotational adjustments along a single axis. With a length of 254.0 mm (10.000 in), it provides extended reach for various applications. Constructed from aluminum with a silver finish, it offers a high static clamp load capacity of 271 Nm (200 ft-lb), ensuring reliable performance in high-stress environments. Ideal for enhancing the versatility of workholding and containment systems.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES10-100-10 SINGLE END 1in. DIA BORE 10in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 1.00" rod end extension mounts to 1.00" round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
Tube Diameter (mm) | 25.4 |
Tube Diameter (in) | 1.00 |
Length (mm) | 254.0 |
Length (in) | 10.000 |
Material | Aluminum |
Finish | Silver |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Single End Extensions |
Tube Size | 1.00 in |
Weight (kg) | 0.41 |
Weight (lb) | 0.90 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
