Brand: DESTACO

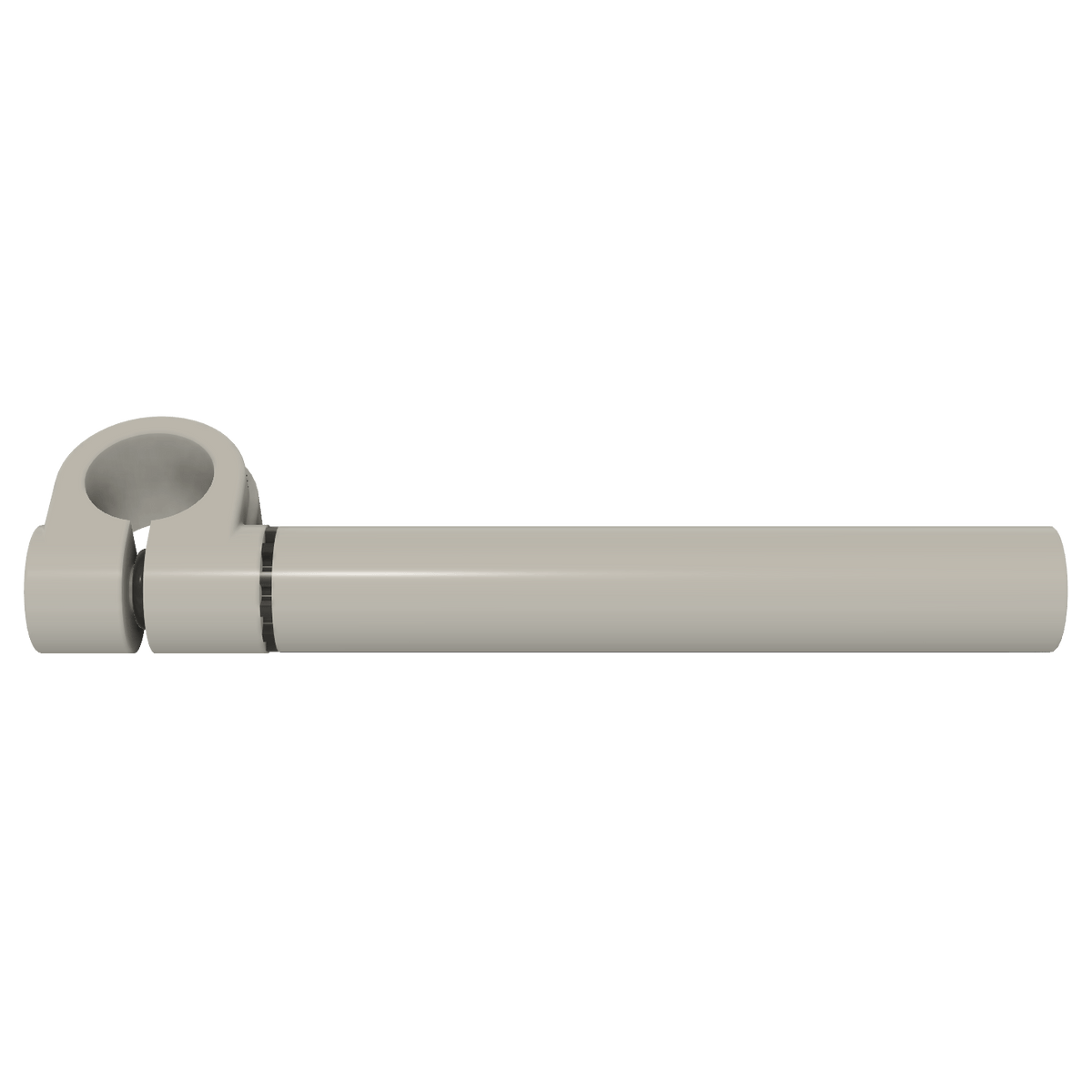

DESTACO CPI-ES10-100-06 SINGLE END 1in. DIA BORE 6in. L

SKU: DE-STA-CO-CPI-ES10-100-06
MPN: CPI-ES10-100-06

$39.17
Unit price per
Save $4.52

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-ES10-100-06 Single End Swivel Arm is a versatile extension for mounting in automation and workholding systems. It connects a 1.00" diameter rod to a 1.00" (25.4 mm) round tube, providing 360° rotational adjustment along a single axis. With a length of 152.4 mm (6.000 in), it extends mounting flexibility for tools like venturi, bumpers, and locators. Constructed from durable aluminum with a silver finish, it supports a maximum static clamp load of 271 Nm (200 ft-lb). This swivel arm is ideal for setups requiring robust and precise component positioning.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-ES10-100-06 SINGLE END 1in. DIA BORE 6in. L

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

1.00" rod end extension mounts to 1.00" round tube for extended mounting options
Provides 360° of rotational adjustments along a single axis

Tube Diameter (mm)	25.4
Tube Diameter (in)	1.00
Length (mm)	152.4
Length (in)	6.000
Material	Aluminum
Finish	Silver
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Single End Extensions
Tube Size	1.00 in
Weight (kg)	0.28
Weight (lb)	0.62
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
