Brand: DESTACO

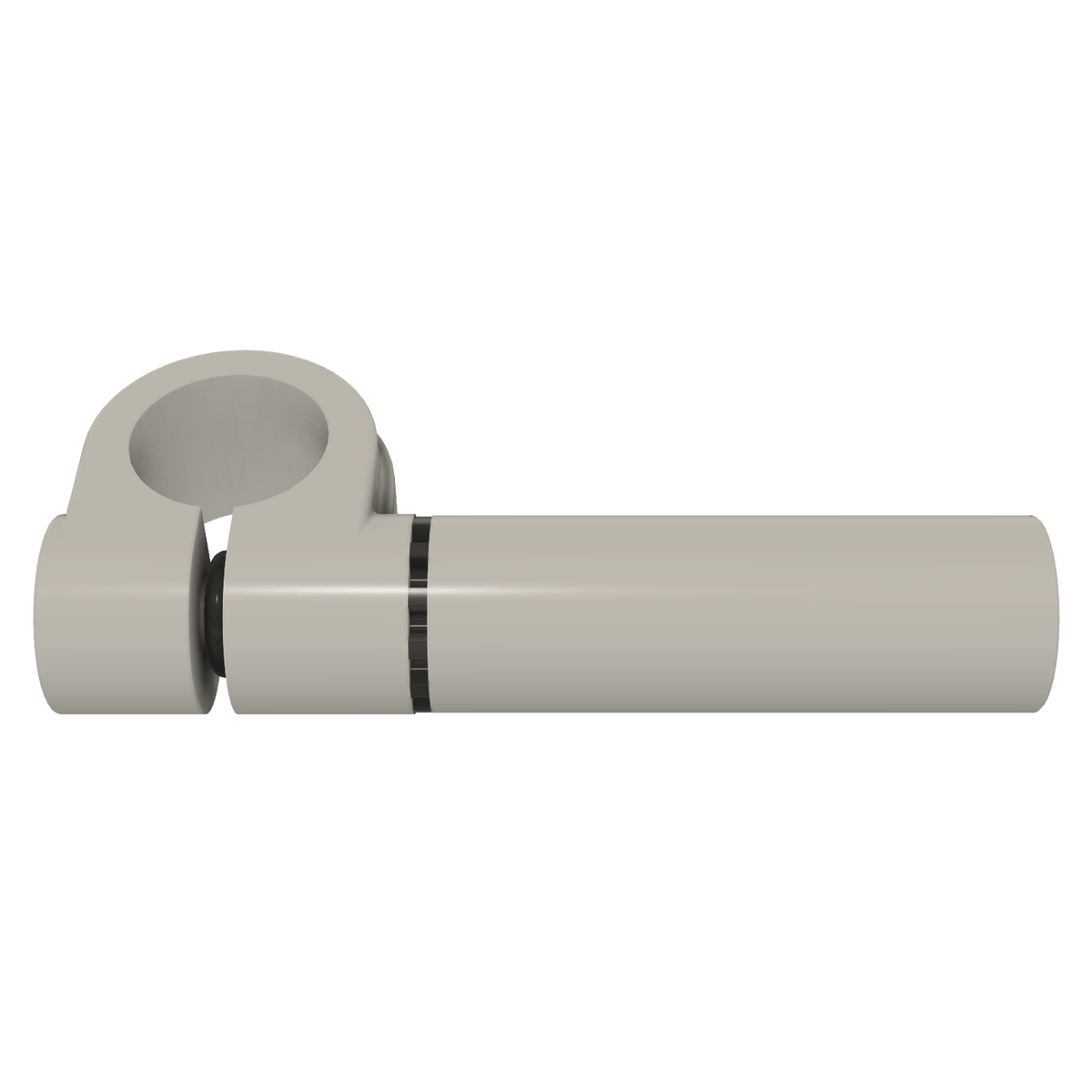

DESTACO CPI-ES10-100-03 SINGLE END 1in. DIA BORE 3in. L
SKU: DE-STA-CO-CPI-ES10-100-03
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES10-100-03 Single End Swivel Arm is a compact extension tool designed for precise mounting in automation and workholding applications. It connects a 1.00" diameter rod to a 1.00" (25.4 mm) round tube, enabling 360° rotation along a single axis for flexible positioning. With a length of 76.2 mm (3.000 in), it offers extended reach for mounting components like venturi or bumpers. Made of durable aluminum with a silver finish, it supports a maximum static clamp load of 271 Nm (200 ft-lb). This product is ideal for applications requiring extended mounting in tight spaces.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES10-100-03 SINGLE END 1in. DIA BORE 3in. L
Swivel Arm, Single End Extensions for Round Tooling
- 1.00" rod end extension mounts to 1.00" round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
| Tube Diameter (mm) | 25.4 |
| Tube Diameter (in) | 1.00 |
| Length (mm) | 76.2 |
| Length (in) | 3.000 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Single End Extensions |
| Tube Size | 1.00 in |
| Weight (kg) | 0.19 |
| Weight (lb) | 0.42 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
