Brand: DESTACO

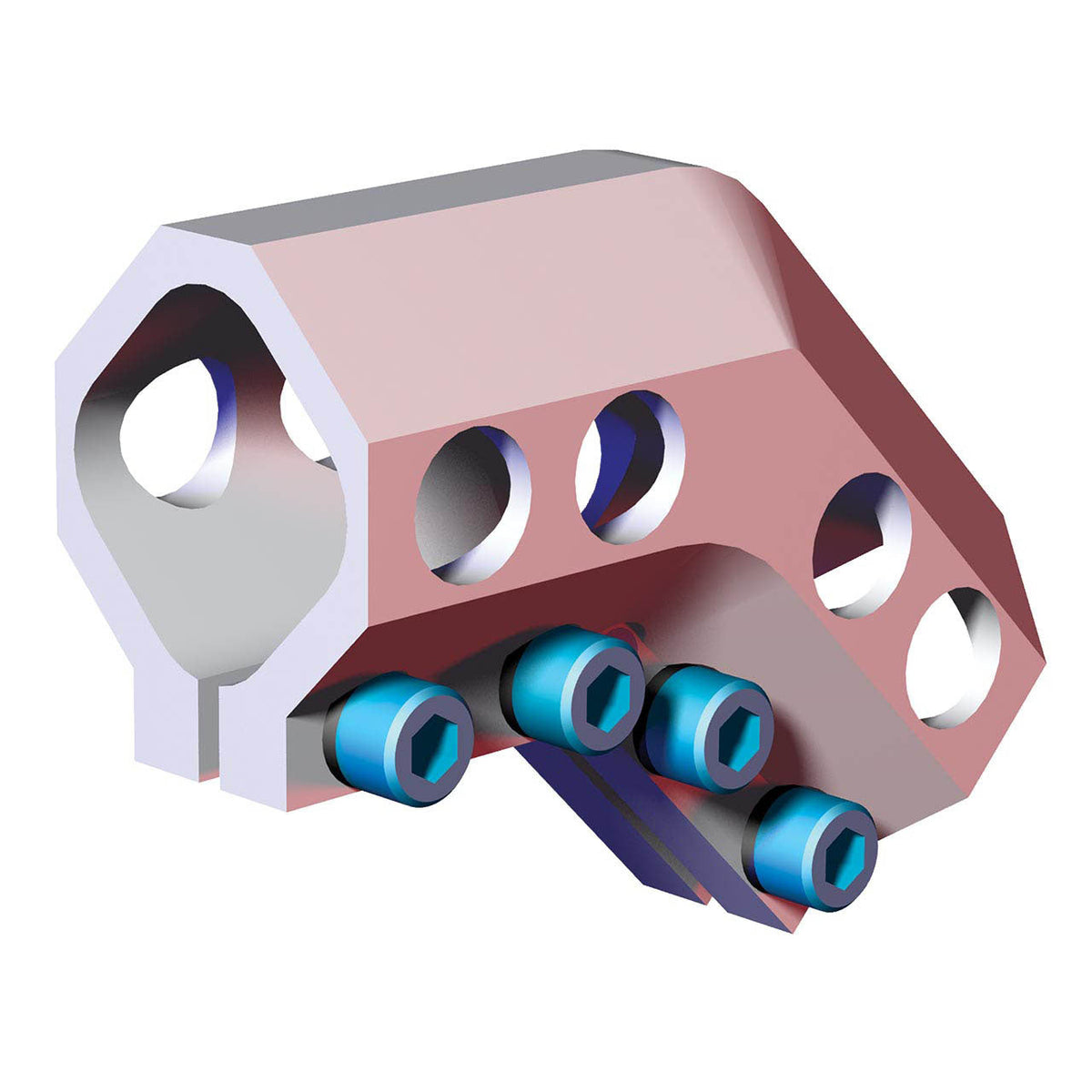

DESTACO CPI-DC-4545B-45 45DEG EXTERNAL BOOM CLAMP ASSY - 45MM EXT

SKU: DE-STA-CO-CPI-DC-4545B-45
MPN: CPI-DC-4545B-45

$774.94
Unit price per
Save $89.58

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-DC-4545B-45 is a 45° angular boom clamp bracket designed to mount two 45 mm (1.77 in) BodyBuilder extrusion booms inline at a 45° angle. Made from aluminum, it provides a maximum static clamp load of 475 Nm (350 ft-lb). This robust component is ideal for high-performance automation, offering secure and precise angular connections for heavy-duty robotic and tooling systems.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-DC-4545B-45 45DEG EXTERNAL BOOM CLAMP ASSY - 45MM EXT

Angular Boom Clamp Bracket mounts (2) 45mm extrusion booms inline at a 45° angle Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts (2) 45 mm Bodybuilder extrusion booms inline at a 45° angle

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Material	Aluminum
Maximum Static Clamp Load (Nm)	475
Maximum Static Clamp Load (ft lb)	350
Product Type	Elbow Bracket
Tube Size	45B / 45B
Weight (kg)	0.64
Weight (lb)	1.40
Product Series Description	Clamp Block
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
Tube Combinations (mm)	45 / 45
Tube Combinations (in)	1.77 / 1.77
