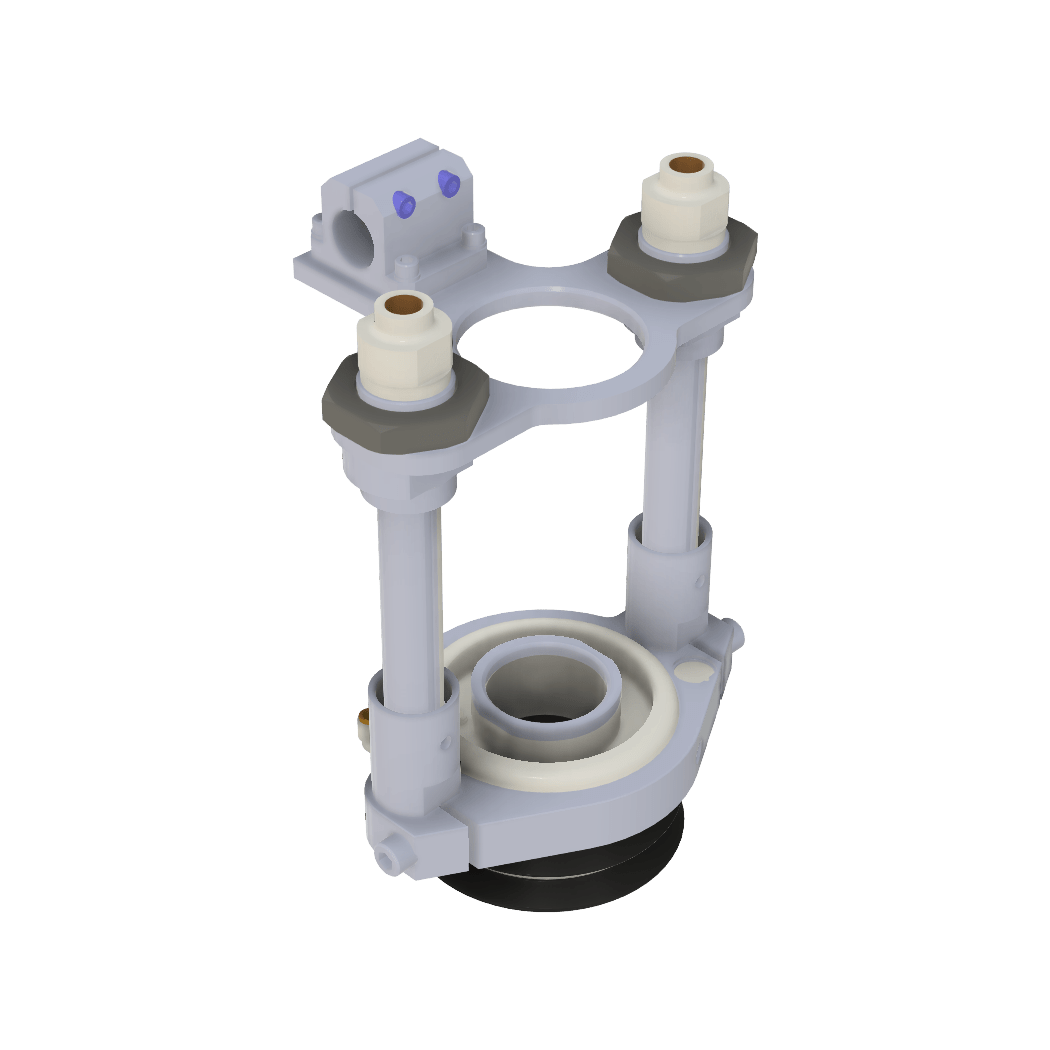

DESTACO CPI-DBD-54-SCMB-100M-HD DBD MOUNT 54MM-HEAVY DUTY 100MM SCM

Brand: DESTACO

DESTACO CPI-DBD-54-SCMB-100M-HD DBD MOUNT 54MM-HEAVY DUTY 100MM SCM

SKU: DE-STA-CO-CPI-DBD-54-SCMB-100M-HD
MPN: CPI-DBD-54-SCMB-100M-HD

  • $2,063.38
    Unit price per
  • Save $238.53
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-DBD-54-SCMB-100M-HD is a heavy-duty, 54mm bulkhead mount designed for high-performance automation. It features an orbital design providing ±15° compliance without adjustments, enhancing versatility and precision. The heavy-duty build offers increased stability, ideal for demanding applications. With a 100mm travel range, it includes a tube size of 25mm (0.98 inches) and a sensor diameter of 54mm. The mount measures 307.9mm (12.12 inches) in length, ensuring robust and reliable performance in industrial environments.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-DBD-54-SCMB-100M-HD DBD MOUNT 54MM-HEAVY DUTY 100MM SCM

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Orbital design allows compliance to blanks within +/- 15° without having to make any automation, tooling or robot adjustments. [US Patent No. 4,662,668]
  • Elimination of compression springs results in long-lasting, reliable performance
  • HD Version provides added stability for heavy-duty applications
Product Metric
Tube Diameter (mm) 25
Tube Diameter (in) 0.98
Length (mm) 307.9
Length (in) 12.120
Product Type Bulkhead Mount
Travel (mm) 100
Tube Size 25 mm
Sensor Diameter (mm) 54.0
Weight (kg) 3.06
Weight (lb) 6.75
Product Series Description Standard Travel Spring Cup Mount
Product Function Robotic Tooling
Product Family End Effectors
Product Group double blank detectors
Travel (in) 4
