Brand: DESTACO

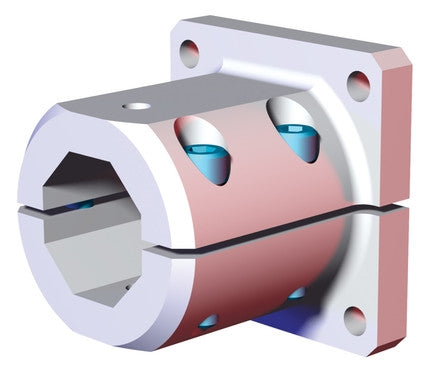

DESTACO CPI-CLM-30B-20F MICROTOOLING END MOUNT CLAMP - 30BB

SKU: DE-STA-CO-CPI-CLM-30B-20F
MPN: CPI-CLM-30B-20F

$256.34
Unit price per
Save $29.63

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-CLM-30B-20F Microtooling End Mount Clamp is designed to mount 30mm extrusion at a 90° angle to the mounting surface. It serves as a versatile transition bracket, ideal for robotic end effectors, and can function as a robot interface when a quick-change connector is unnecessary. Constructed from aluminum, it offers a maximum static clamp load of 102 Nm (75 ft-lb). This durable and lightweight component is suitable for various automation and workholding applications where precision and stability are required.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-CLM-30B-20F MICROTOOLING END MOUNT CLAMP - 30BB

BodyBuilder Transition Brackets & Blocks - Robotic End Effectors

Mounts 30mm extrusion 90° to the mounting surface.

Mounts 30mm extrusion 90° to the mounting surface
Can be used as robot interface when quick-change connector is not required.

Tube Diameter (mm)	30
Tube Diameter (in)	1.18
Material	Aluminum
Maximum Static Clamp Load (Nm)	102
Maximum Static Clamp Load (ft lb)	75
Product Type	Mount, End Flange
Tube Size	30B
Weight (kg)	0.29
Weight (lb)	0.60
Product Series Description	Clamp Block
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
