Brand: DESTACO

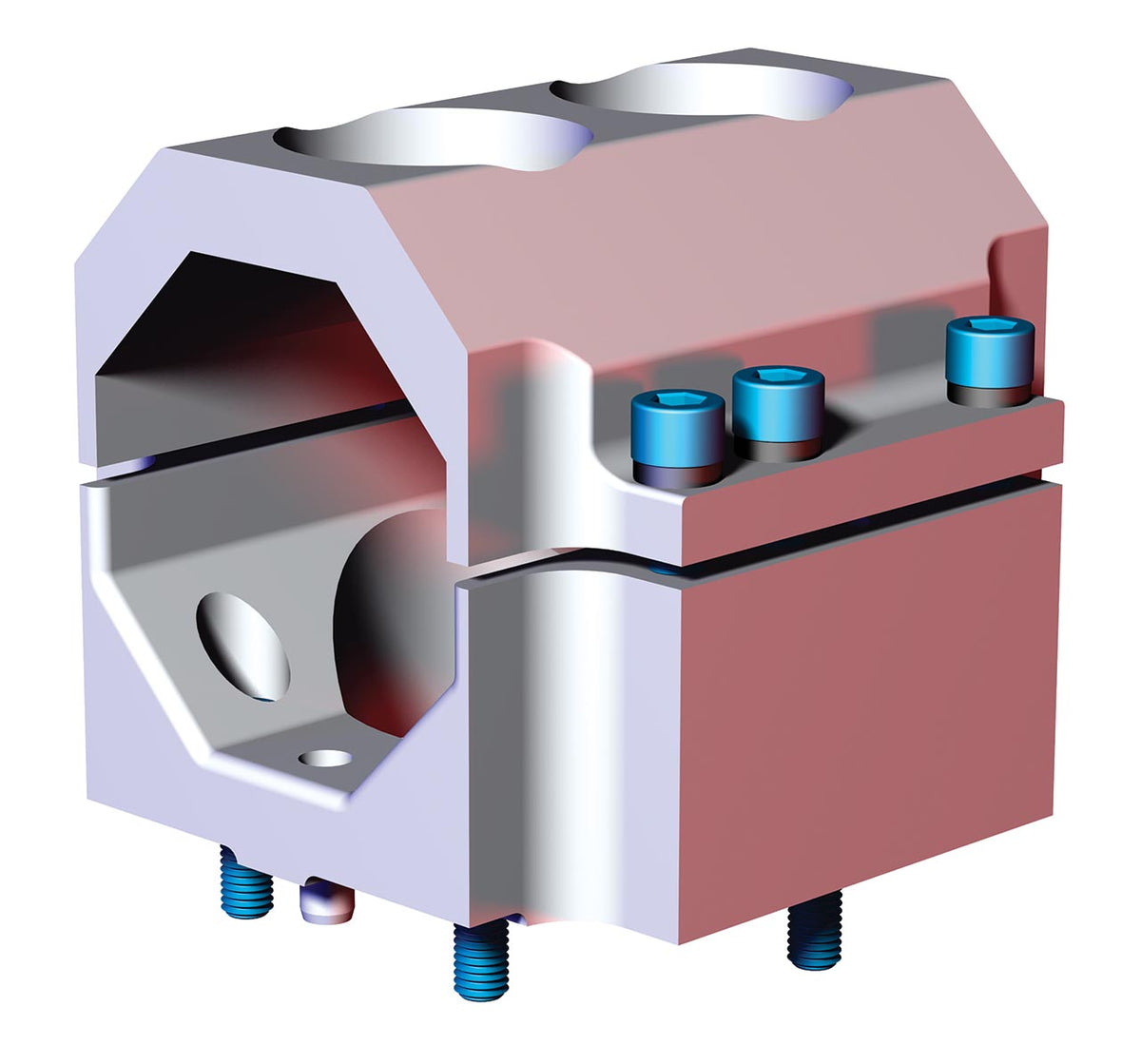

DESTACO CPI-ATI-151-90HD-90BB HEAVY DUTY 151 ATI ADAPTER
SKU: DE-STA-CO-CPI-ATI-151-90HD-90BB
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ATI-151-90HD-90BB HEAVY DUTY 151 ATI ADAPTER is a versatile and high-performance automation product that is perfect for workholding and containment. Use it as a direct interface for your robot and experience fast and efficient operation. With a tube diameter of 90mm and a length and width of 152.4mm, this adapter is designed to be strong and durable. Made of durable aluminum, it can handle a maximum static product load of 1,355 Nm (1,000 ft-lb). Don't miss out on this essential mid mount for all your automation needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ATI-151-90HD-90BB HEAVY DUTY 151 ATI ADAPTER
90mm Mid Mount can be used as a direct robot interface Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as direct robot interface
- Fasteners included.
- Dowels not included
| Tube Diameter (mm) | 90 |
| Tube Diameter (in) | 3.54 |
| Length (mm) | 152.4 |
| Length (in) | 6.000 |
| Width (mm) | 152.4 |
| Width (in) | 6.000 |
| Height (mm) | 126.9 |
| Height (in) | 4.990 |
| Material | Aluminum |
| Maximum Static Product Load (Nm) | 1,355 |
| Maximum Static Product Load (ft lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 90B |
| Weight (kg) | 2.89 |
| Weight (lb) | 6.38 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
