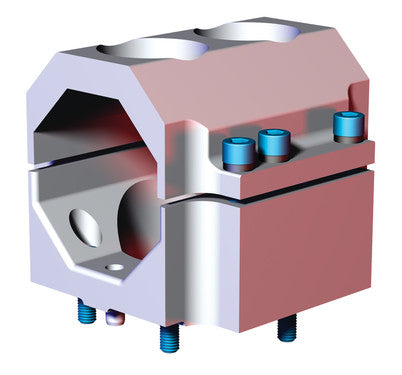

DESTACO CPI-ATI-151-90HD-60BB HEAVY DUTY 151 ATI ADAPTER

Brand: DESTACO

DESTACO CPI-ATI-151-90HD-60BB HEAVY DUTY 151 ATI ADAPTER

SKU: DE-STA-CO-CPI-ATI-151-90HD-60BB
MPN: CPI-ATI-151-90HD-60BB

  • $2,569.90
    Unit price per
  • Save $297.08
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-ATI-151-90HD-60BB Heavy Duty 151 ATI Adapter is a mid-mount designed for BodyBuilder systems with hole patterns for extrusion clamping, suitable for robotic end effectors. It features a 60mm (2.36-inch) tube diameter and can serve as a direct robot interface, providing versatility in automation setups. The adapter comes with fasteners for installation (dowels not included) and has a compact size of 152.4mm (6.00 inches) in length and width with a height of 90.4mm (3.560 inches). Made from aluminum, it supports a maximum static product load of 746 Nm (550 ft-lb), ensuring robust and reliable performance for heavy-duty applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-ATI-151-90HD-60BB HEAVY DUTY 151 ATI ADAPTER

BodyBuilder Mid-Mounts with Hole Patterns for Extrusion Clamping - Robotic End Effectors

60mm Mid Mount can be used as a direct robot interface

  • Can be used as direct robot interface
  • Fasteners included.
  • Dowels not included
Tube Diameter (mm) 60
Tube Diameter (in) 2.36
Length (mm) 152.4
Length (in) 6.000
Width (mm) 152.4
Width (in) 6.000
Height (mm) 90.4
Height (in) 3.560
Material Aluminum
Maximum Static Product Load (Nm) 746
Maximum Static Product Load (ft lb) 550
Product Type Mid Mount
Tube Size 60B
Weight (kg) 3.22
Weight (lb) 7.10
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
