Brand: DESTACO

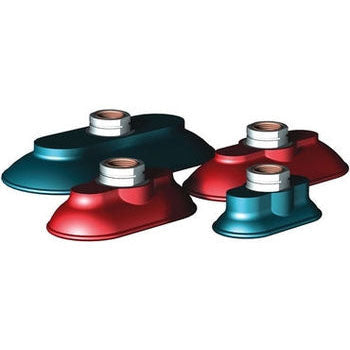

DESTACO CPI-75-150PF-C-45 Vacuum Cup
SKU: DE-STA-CO-CPI-75-150PF-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the superior performance of DESTACO CPI-75-150PF-C-45 Vacuum Cup! Designed specifically for moderately flat to medium contour, dry surfaces, these oval flatfoot vacuum cups are a must-have for all your automation, workholding, and containment needs. With a holding capacity of up to 55.0 lbf horizontally and 72 lbf for vertical lifts, they can handle even the most challenging tasks with ease. Crafted from durable Nitrile material with a Durometer of 45 (in bold red), these vacuum cups are built to last. And with a weight of only 7.1 oz and dimensions of 6.000 x 3.000 inches, they are lightweight and compact for easy use and transport. Trust in DESTACO for all your high-performance solutions - order now and elevate your productivity to new heights!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-75-150PF-C-45 Vacuum Cup
Oval flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
| Holding Capacity - Horizontal Dry (kg) | 24.9 |
| Holding Capacity - Horizontal Dry (lbf) | 55.0 |
| Holding Capacity - Horizontal Wet (kg) | 4.1 |
| Holding Capacity - Horizontal Wet (lbf) | 9.0 |
| Holding Capacity - Vertical Lift (kg) | 33 |
| Holding Capacity - Vertical Lift (lbf) | 72 |
| Weight (g) | 201.0 |
| Weight (oz) | 7.1 |
| Length (mm) | 152.9 |
| Length (in) | 6.000 |
| Width (mm) | 76.2 |
| Width (in) | 3.000 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Flatfoot |
| Cup Size | 75 x 150 mm |
| Cup Size | 2.95 x 5.90 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
