Brand: DESTACO

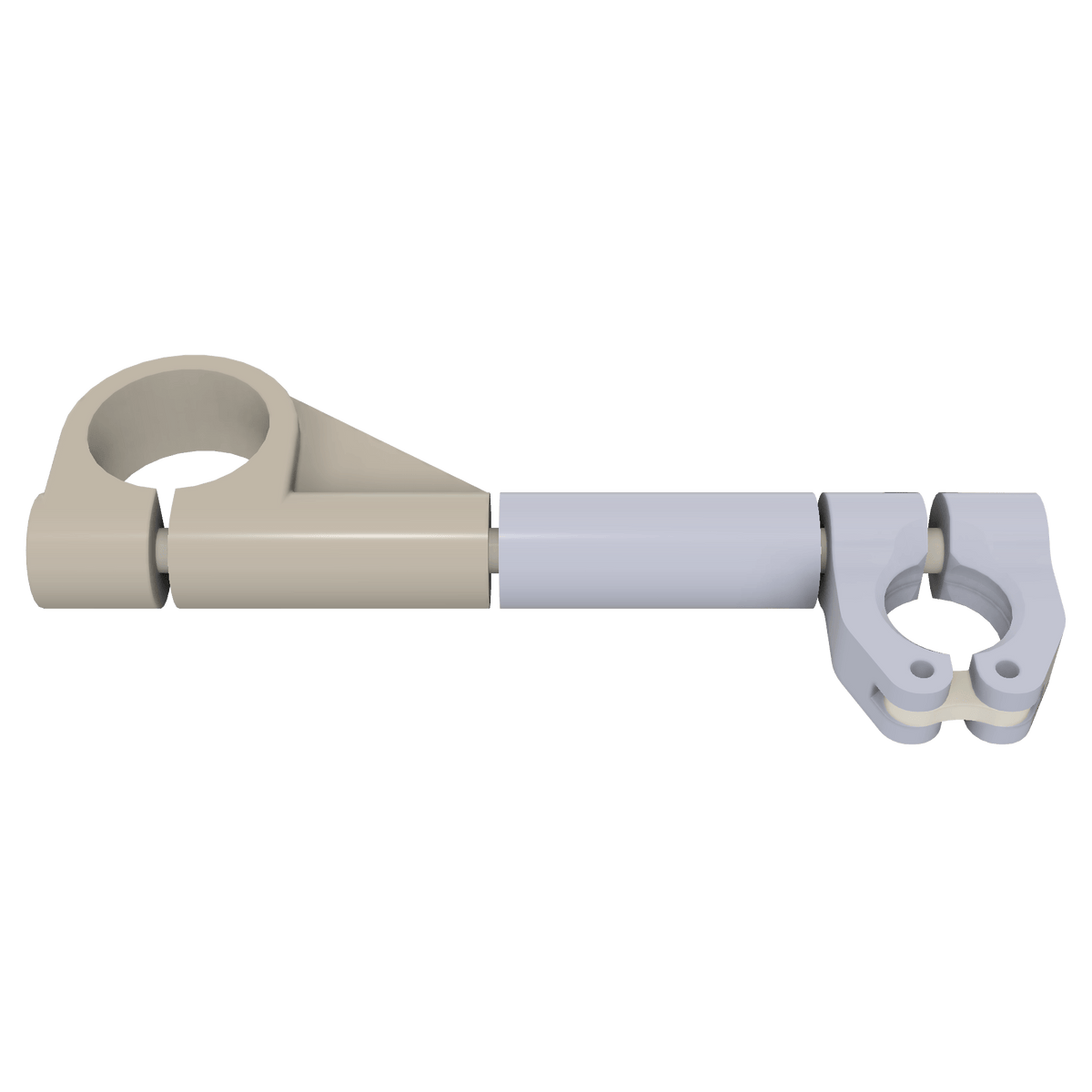

DESTACO CPI-700-15-SA-B112 7in. BALL END SWIVEL 1 1/2in. SERIES
SKU: DE-STA-CO-CPI-700-15-SA-B112
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-700-15-SA-B112 Ball End Swivel Arm is a 7-inch long arm designed for high-performance automation and workholding applications. It features a 1.125-inch swivel ball that mounts to a 1.50" round tube, providing 360° rotational adjustments in three axes. This swivel arm is ideal for mounting components such as venturi, bumpers, round locators, and proximity switches. It has a tube diameter of 38.1 mm (1.50") and a length of 172.3 mm (6.780 inches). Constructed from durable aluminum with a silver finish, it supports a maximum static clamp load of 271 Nm (200 ft-lb).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-700-15-SA-B112 7in. BALL END SWIVEL 1 1/2in. SERIES
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 1.125" swivel ball accessories to 1.50‚¬ round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Tube Diameter (mm) | 38.1 |
Tube Diameter (in) | 1.50 |
Length (mm) | 172.3 |
Length (in) | 6.780 |
Material | Aluminum |
Finish | Silver |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Swivel Arm |
Tube Size | 1.50 in |
Weight (kg) | 0.50 |
Weight (lb) | 1.09 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
