Brand: DESTACO

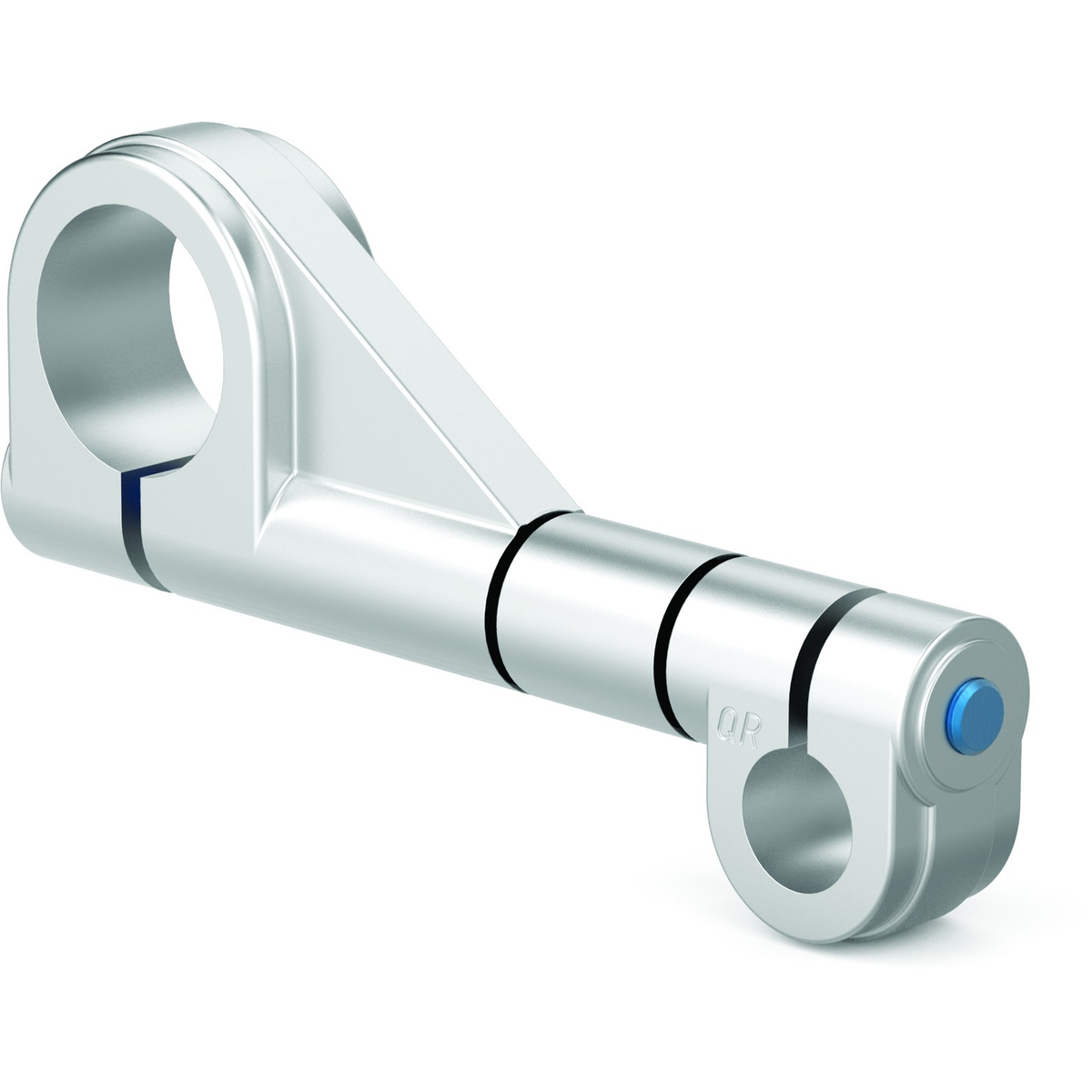

DESTACO CPI-700-15-SA Swivel Arm
SKU: DE-STA-CO-CPI-700-15-SA
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
The DESTACO CPI-700-15-SA Swivel Arm provides an adjustable connection within a modular end-of-arm tooling assembly. It is made from aluminum with a silver finish. Key specifications include tube size: 1.50 in, length (in): 6.72, maximum static clamp load (ft lb): 200. This model belongs to DESTACO’s Round Tooling family and Accessory Mounting Swivel Arms product group. Review the specifications below when selecting components for your tooling layout.
Product Specifications
| Brand | DESTACO |
|---|---|
| Part Number | CPI-700-15-SA |
| Product Family | Round Tooling |
| Product Group | Accessory Mounting Swivel Arms |
| Product Type | Swivel Arm |
| Product Application | HANDLING |
| Length (in) | 6.72 |
| Weight (lb) | 1.05 |
| Length (mm) | 170.7 |
| Weight (kg) | 0.54 |
| Apple Core Size | 19 |
| Tube Size | 1.50 in |
| Apple Core (in) | 0.75 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Maximum Static Clamp Load (Nm) | 271 |
| Tube Diameter (mm) | 38.1 |
| Material | Aluminum |
| Finish | Silver |
