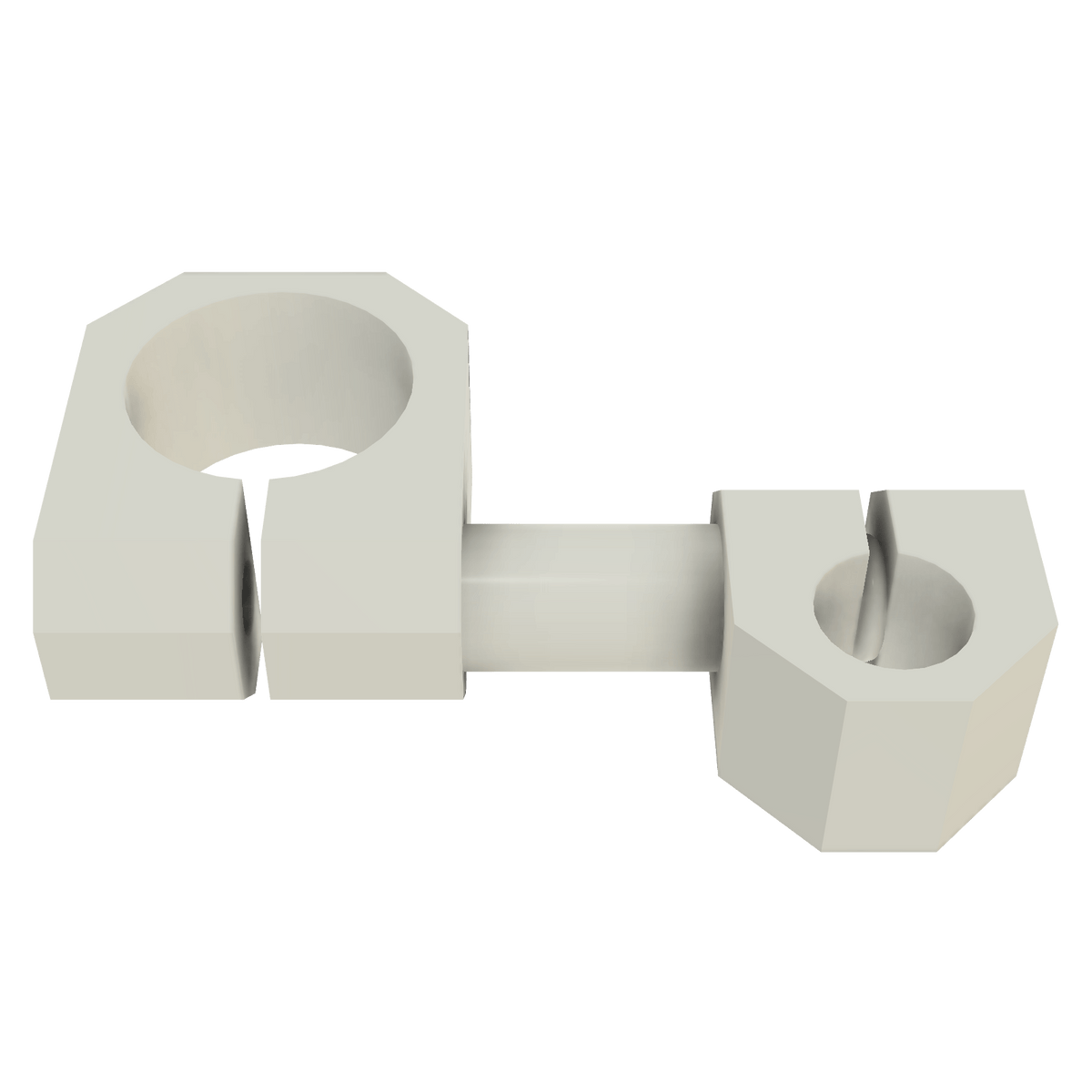

DESTACO CPI-600-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

SKU: DE-STA-CO-CPI-600-30B50-MSA
MPN: CPI-600-30B50-MSA

$264.90
Unit price per
Save $30.62

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-600-30B50-MSA Microtooling Swivel Arm is designed for mounting 0.50" apple core accessories to a 30 mm (1.18") BodyBuilder extrusion boom. Featuring a one-bolt design, it allows for easy assembly, adjustment, and repositioning. The arm provides 360° rotational adjustments along three axes and is suitable for mounting venturi, bumpers, round locators, and proximity switches. Constructed from aluminum, it has a length of 150 mm (5.910 inches), offering durability and versatility for automation applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-600-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

Use the swivel arm to mount venturi, bumpers, round locators, and proximity switches. One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 0.50" apple core to BodyBuilder 30mm extrusion boom
One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily
Provides 360° of adjustments in (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Apple Core (mm)	12.7
Apple Core (in)	0.500
Tube Diameter (mm)	30
Tube Diameter (in)	1.18
Length (mm)	150.0
Length (in)	5.910
Material	Aluminum
Maximum Static Clamp Load (Nm)	102
Maximum Static Clamp Load (ft lb)	75
Product Type	Swivel Arm
Tube Size	30B
Weight (kg)	0.14
Weight (lb)	0.30
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
Apple Core Size	12.7
