Brand: DESTACO

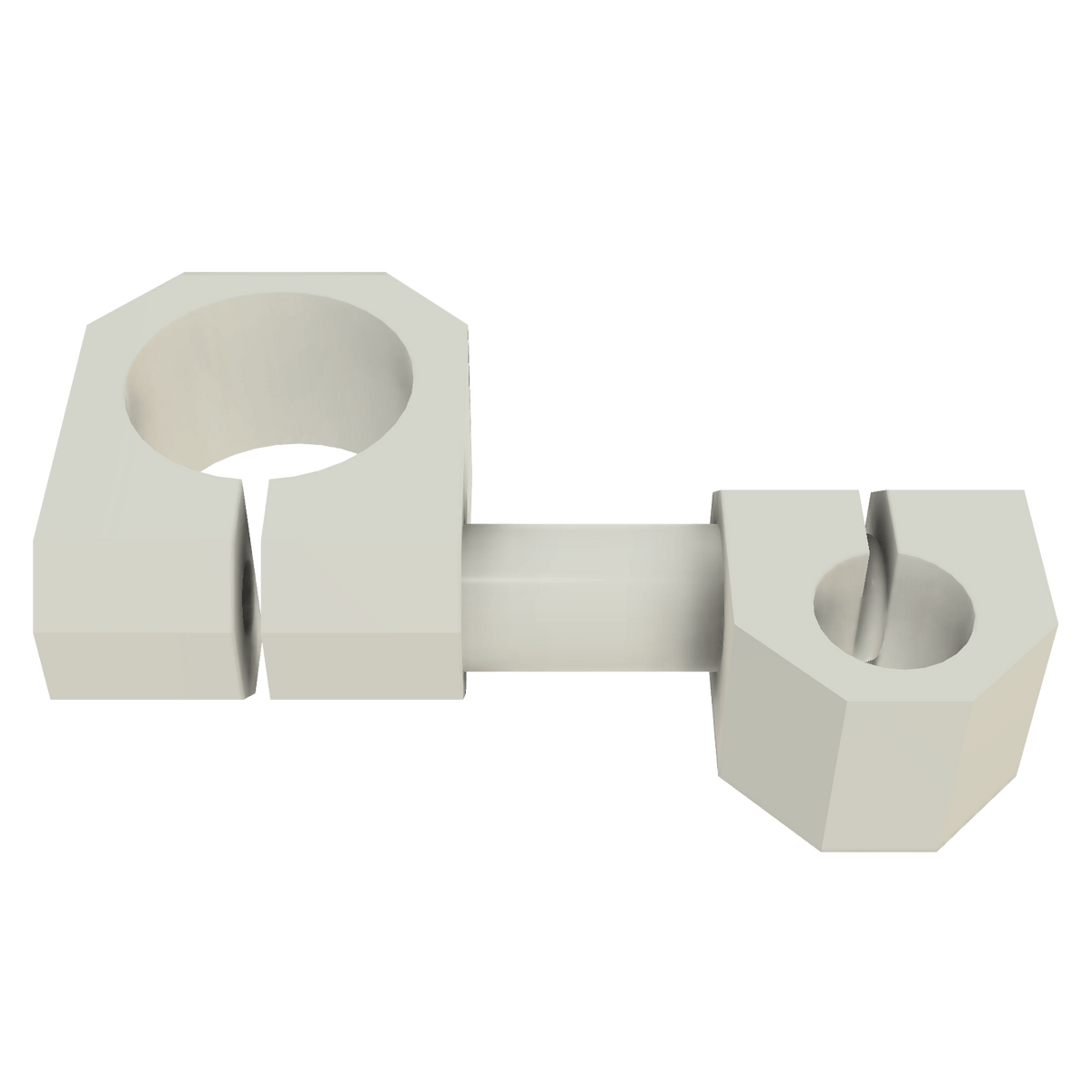

DESTACO CPI-600-25M50-MSA 25MM TO 1/2in. SWIVEL ARM ASSEMBLY
SKU: DE-STA-CO-CPI-600-25M50-MSA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-600-25M50-MSA Swivel Arm Assembly connects 0.50" micro apple core accessories to a 25 mm (0.98") round tube. It allows for 360° rotational adjustments along three axes, making it ideal for mounting venturi, bumpers, round locators, and proximity switches. The arm is constructed from durable aluminum, measures 152.4 mm (6.000 inches) in length, and supports a maximum static clamp load of 163 Nm (120 ft-lb). This versatile swivel arm is designed for high-performance automation and workholding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-600-25M50-MSA 25MM TO 1/2in. SWIVEL ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 12.7 mm (0.75") micro apple core accessories to 25 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 12.7 |
| Apple Core (in) | 0.500 |
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Length (mm) | 152.4 |
| Length (in) | 6.000 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 163 |
| Maximum Static Clamp Load (ft lb) | 120 |
| Product Type | Swivel Arm |
| Tube Size | 25 mm |
| Weight (kg) | 0.13 |
| Weight (lb) | 0.27 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 12.7 |
