Brand: DESTACO

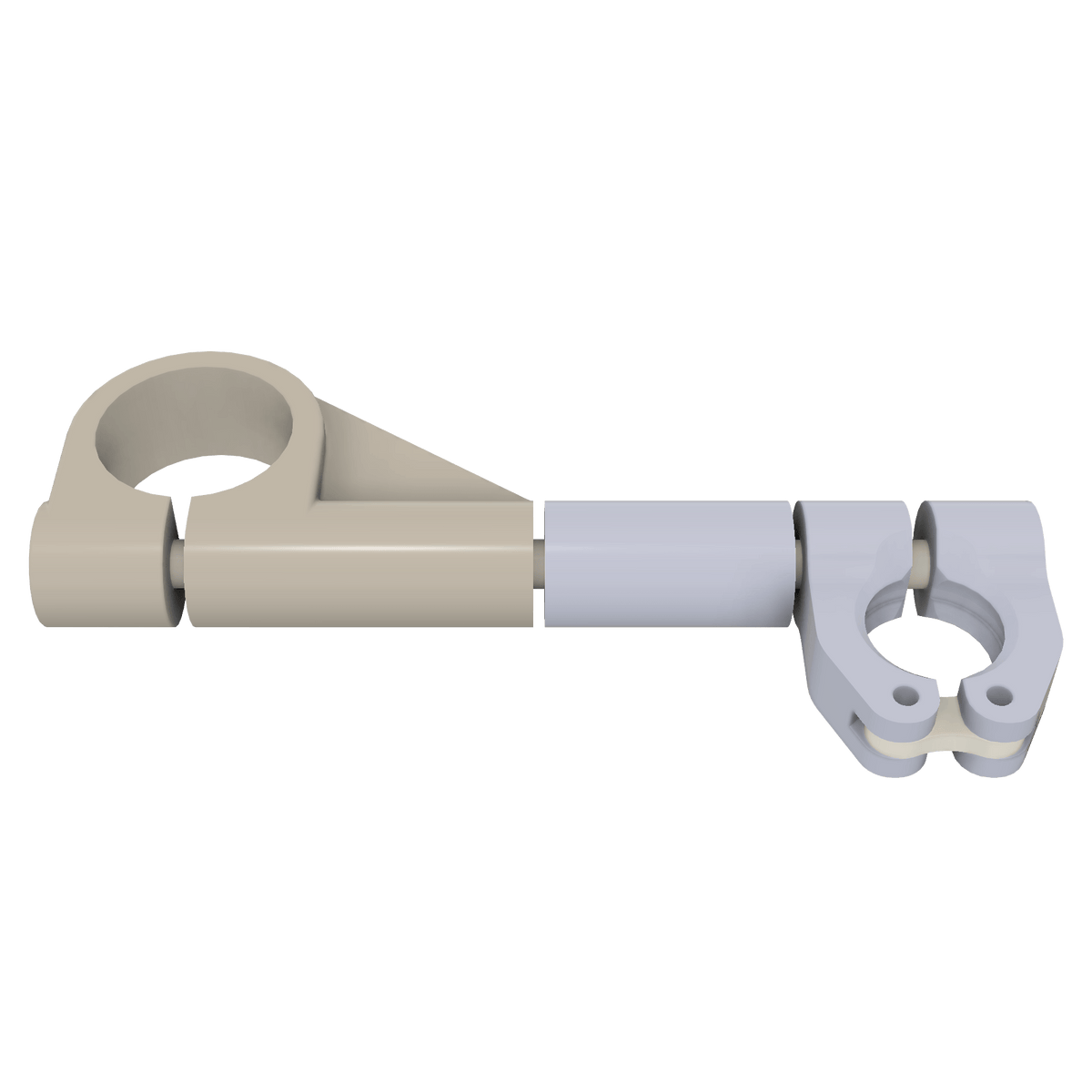

DESTACO CPI-600-15-SA-B112 6in. BALL END SWIVEL 1 1/2in. SERIES
SKU: DE-STA-CO-CPI-600-15-SA-B112
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-600-15-SA-B112 Ball End Swivel Arm mounts 1.125" swivel ball accessories to a 1.50" round tube. It enables 360° rotational adjustments across three axes, making it suitable for venturi, bumpers, round locators, and proximity switches. Constructed from aluminum with a silver finish, it measures 153.7 mm (6.050 inches) in length. With a maximum static clamp load of 271 Nm (200 ft-lb), this swivel arm ensures durability and precise positioning for automation and workholding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-600-15-SA-B112 6in. BALL END SWIVEL 1 1/2in. SERIES
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 1.125" swivel ball accessories to 1.50" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Tube Diameter (mm) | 38.1 |
| Tube Diameter (in) | 1.50 |
| Length (mm) | 153.7 |
| Length (in) | 6.050 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 1.50 in |
| Weight (kg) | 0.46 |
| Weight (lb) | 1.02 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
