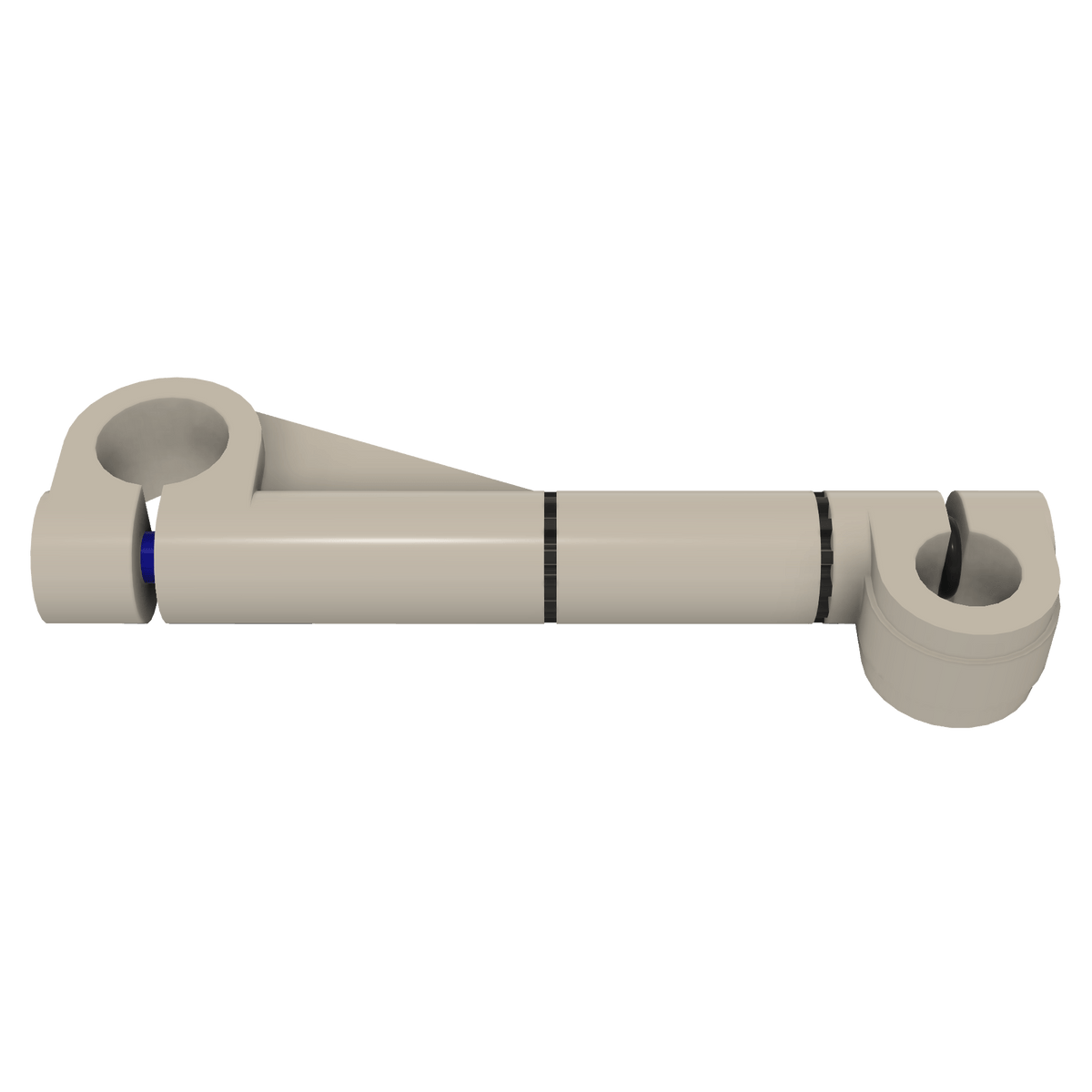

DESTACO CPI-600-1-SA SWIVEL ARM 1in. DIA X 6in. L
SKU: DE-STA-CO-CPI-600-1-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-600-1-SA Swivel Arm is a versatile component designed for high-performance automation and workholding applications. It connects 0.75" apple core accessories to a 1.00" round tube and offers 360° rotational adjustments along three axes. With a length of 153.8 mm (6.050 inches), it is ideal for mounting venturi, bumpers, round locators, and proximity switches. Made from durable aluminum with a silver finish, it supports a maximum static clamp load of 271 Nm (200 ft-lb), ensuring robustness for industrial tasks.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-600-1-SA SWIVEL ARM 1in. DIA X 6in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 0.75" apple core accessories to 1.00" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 19.0 |
| Apple Core (in) | 0.750 |
| Tube Diameter (mm) | 25.4 |
| Tube Diameter (in) | 1.00 |
| Length (mm) | 153.8 |
| Length (in) | 6.050 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 1.00 in |
| Weight (kg) | 0.41 |
| Weight (lb) | 0.90 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 19 |
