Brand: DESTACO

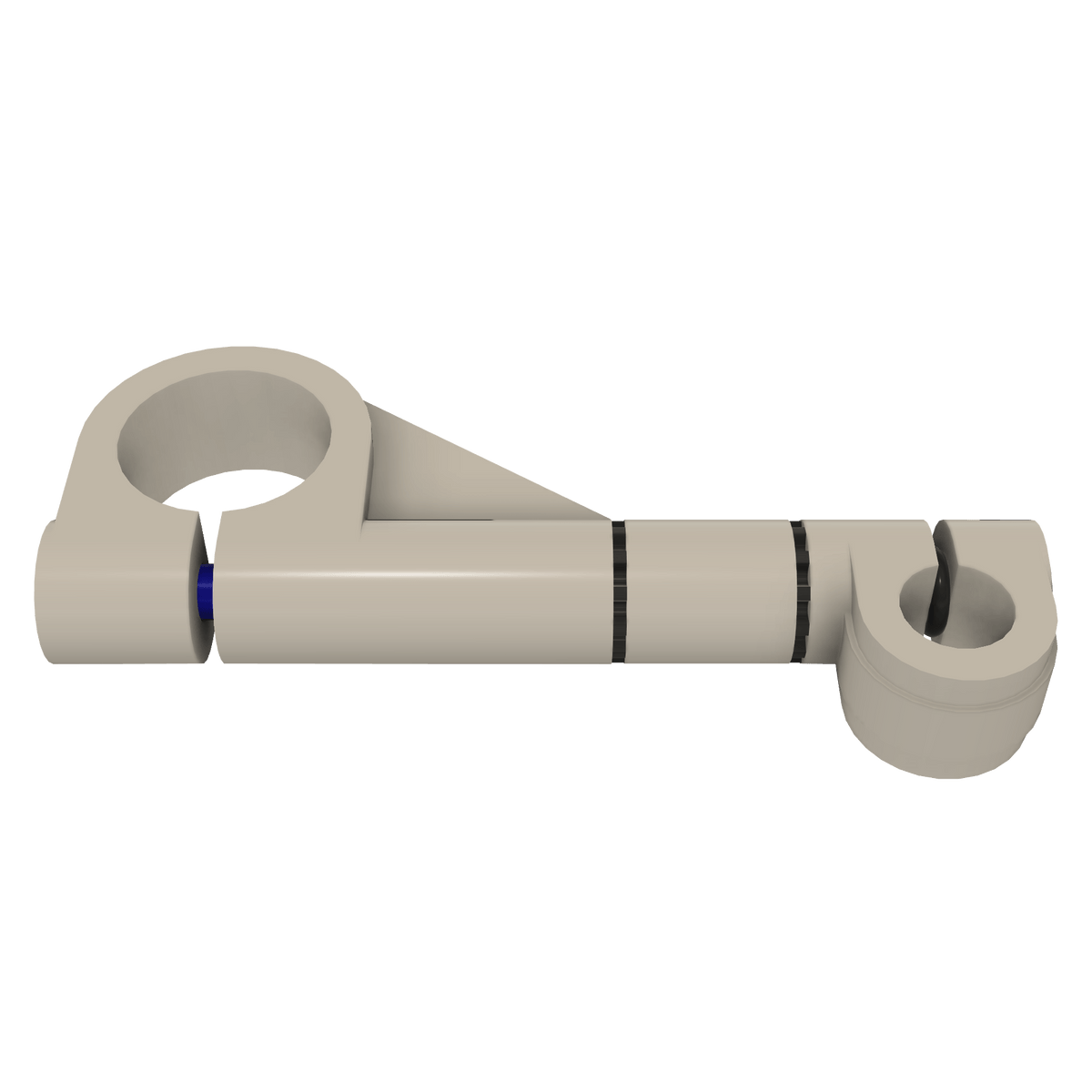

DESTACO CPI-500-15-SA SWIVEL ARM 1.5in. DIA X 5in. L
SKU: DE-STA-CO-CPI-500-15-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-500-15-SA Swivel Arm is designed to mount 0.75" apple core accessories to 1.50" round tubes, offering 360° rotational adjustments across three axes. It is ideal for mounting venturi, bumpers, round locators, and proximity switches. Made from durable aluminum with a silver finish, the arm measures 132.8 mm (5.230 in) in length with a tube diameter of 38.1 mm (1.50 in). With a maximum static clamp load of 271 Nm (200 ft-lb), it delivers robust performance for demanding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-500-15-SA SWIVEL ARM 1.5in. DIA X 5in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 0.75"apple core accessories to 1.50" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 19.0 |
| Apple Core (in) | 0.750 |
| Tube Diameter (mm) | 38.1 |
| Tube Diameter (in) | 1.50 |
| Length (mm) | 132.8 |
| Length (in) | 5.230 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 1.50 in |
| Weight (kg) | 0.41 |
| Weight (lb) | 0.89 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 19 |
