Brand: DESTACO

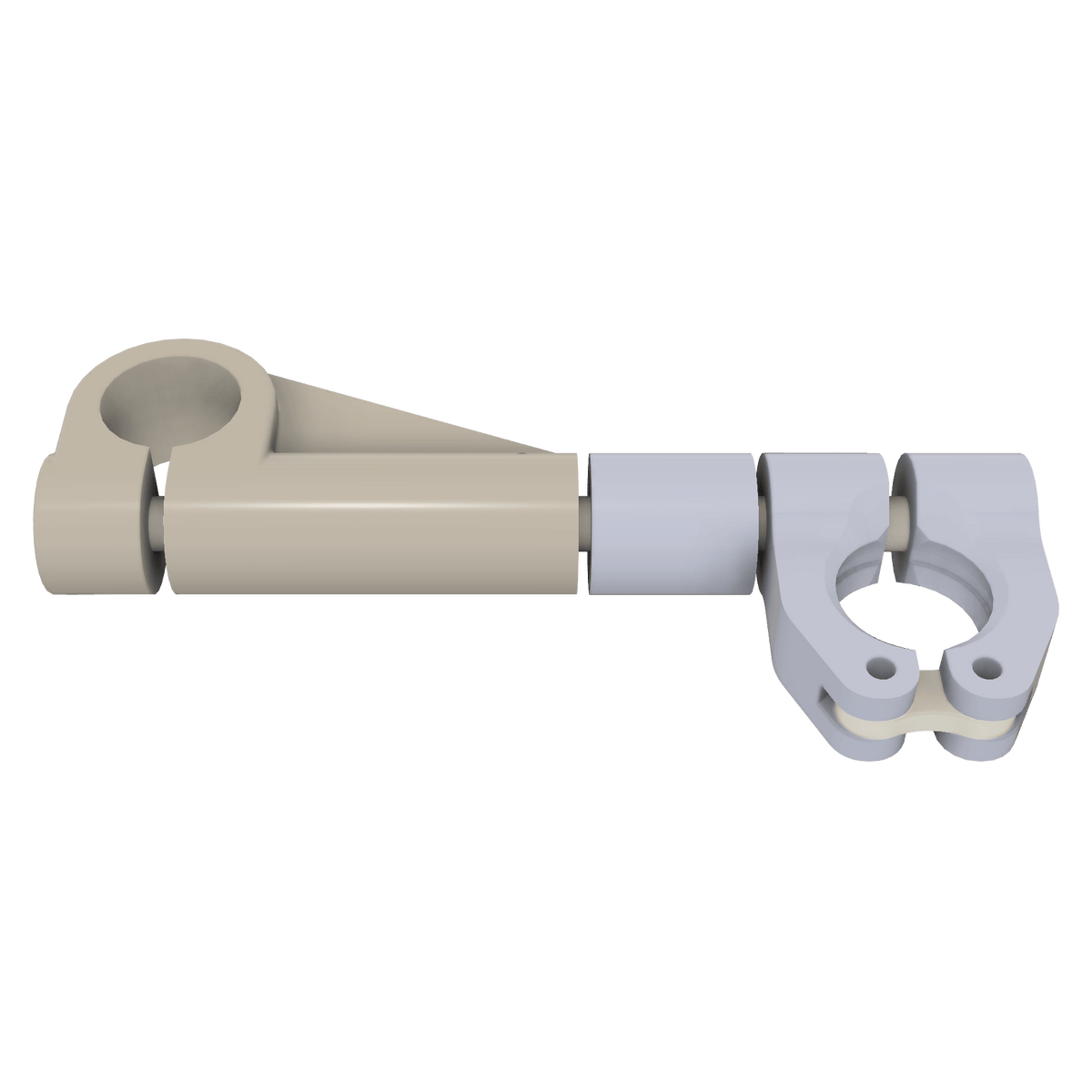

DESTACO CPI-500-1-SA-B112 5in. BALL END SWIVEL 1in. SERIES
SKU: DE-STA-CO-CPI-500-1-SA-B112
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-500-1-SA-B112 Ball End Swivel Arm is designed for mounting 1.125" swivel ball accessories to 1.00" round tubes. It enables 360° rotational adjustments across three axes, ideal for applications involving venturi, bumpers, round locators, and proximity switches. Constructed from durable aluminum with a silver finish, the arm has a length of 136.3 mm (5.370 in) and a tube diameter of 25.4 mm (1.00 in). It supports a maximum static clamp load of 271 Nm (200 ft-lb), offering strength and adaptability for high-performance setups.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-500-1-SA-B112 5in. BALL END SWIVEL 1in. SERIES
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 1.125" swivel ball accessories to 1.00" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Tube Diameter (mm) | 25.4 |
| Tube Diameter (in) | 1.00 |
| Length (mm) | 136.3 |
| Length (in) | 5.370 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 1.00 in |
| Weight (kg) | 0.39 |
| Weight (lb) | 0.86 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
