Brand: DESTACO

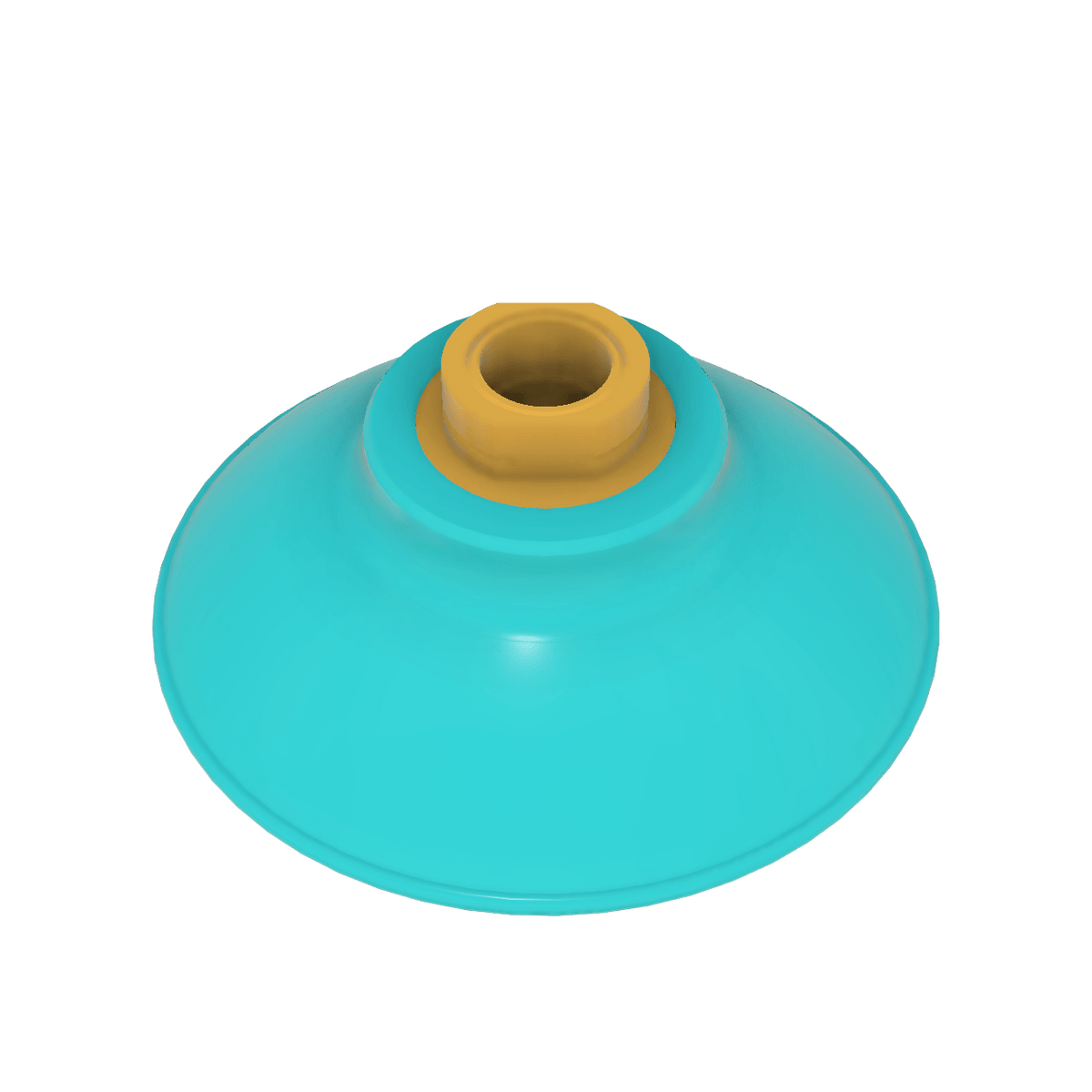

DESTACO CPI-40FF-B-30 CUP FF 4in. B-MT BLUE
SKU: DE-STA-CO-CPI-40FF-B-30
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
Short Description
Introducing the DESTACO CPI-40FF-B-30 CUP FF 4in. B-MT BLUE - the perfect choice for moderately flat to medium contour, dry surfaces. From the Catalog for High-Performance Automation, Workholding, & Containment Solutions by Destaco, these flatfoot vacuum cups offer impressive holding capacity in both horizontal and vertical positions. Weighing only 96.0g (3.4oz) and with a diameter of 101.6mm (4.000in), these cups are made of durable Nitrile Durometer 30 material in a striking blue color. Mount them easily with a 3/8" NPT. Upgrade your automation process today with DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
Full Description
DESTACO CPI-40FF-B-30 CUP FF 4in. B-MT BLUE
Flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
| Holding Capacity - Horizontal Dry (kg) | 0.0 |
| Holding Capacity - Horizontal Dry (lbf) | 35.0 |
| Holding Capacity - Horizontal Wet (kg) | 0.0 |
| Holding Capacity - Horizontal Wet (lbf) | 20.0 |
| Holding Capacity - Vertical Lift (kg) | 46 |
| Holding Capacity - Vertical Lift (lbf) | 102 |
| Weight (g) | 96.0 |
| Weight (oz) | 3.4 |
| Diameter (mm) | 101.6 |
| Diameter (in) | 4.000 |
| Material | Nitrile |
| Durometer | 30 (Blue) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Flatfoot |
| Cup Size | 102 mm |
| Cup Size | 4.00 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
