Brand: DESTACO

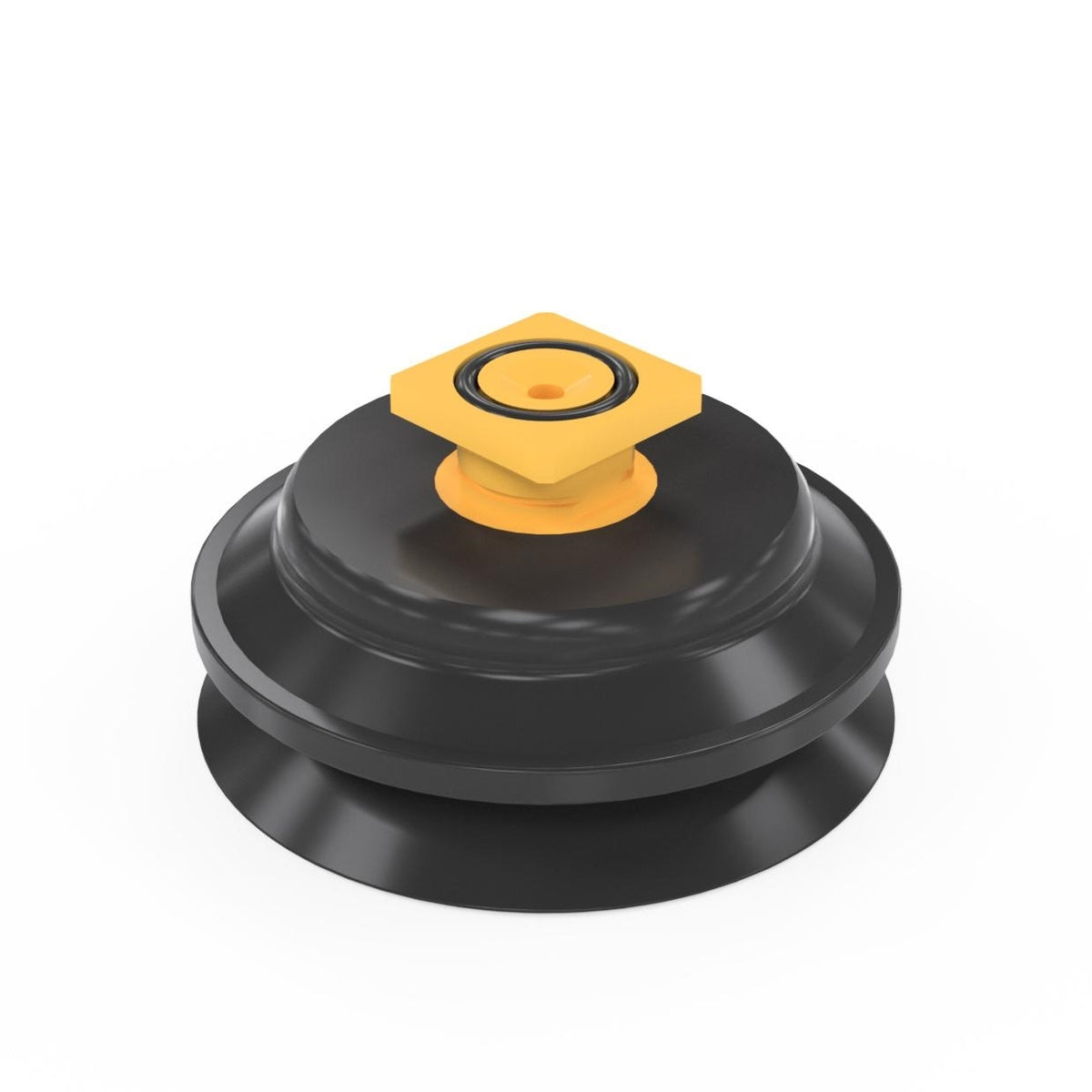

DESTACO CPI-40AC-C-60 CUP BEL 4in. C-MT BLK
SKU: DE-STA-CO-CPI-40AC-C-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-40AC-C-60 CUP BEL 4in. C-MT BLK is a versatile vacuum cup designed for moderately flat, dry surfaces. This high-performance solution is perfect for automation, workholding, and containment needs. With a moderate compression distance, it can easily accommodate minor misalignments while providing a firm grip, with a holding capacity of 15.0 kg (33.0 lbf) horizontally in dry conditions and 3.6 kg (8.0 lbf) horizontally in wet conditions. For vertical lifting, it can hold up to 40 kg (89 lbf). Weighing 91.0 g (3.2 oz) and with a diameter of 102.4 mm (4.030 in), this vacuum cup is made from durable nitrile material with a 60 durometer (black) and can be mounted onto 1.25" square surfaces.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-40AC-C-60 CUP BEL 4in. C-MT BLK
General purpose single bellows vacuum cups best used on moderately flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Moderate compression distance allows for minor misalignments
| Holding Capacity - Horizontal Dry (kg) | 15.0 |
| Holding Capacity - Horizontal Dry (lbf) | 33.0 |
| Holding Capacity - Horizontal Wet (kg) | 3.6 |
| Holding Capacity - Horizontal Wet (lbf) | 8.0 |
| Holding Capacity - Vertical Lift (kg) | 40 |
| Holding Capacity - Vertical Lift (lbf) | 89 |
| Weight (g) | 91.0 |
| Weight (oz) | 3.2 |
| Diameter (mm) | 102.4 |
| Diameter (in) | 4.030 |
| Material | Nitrile |
| Durometer | 60 (Black) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Bellows |
| Cup Size | 102 mm |
| Cup Size | 4.00 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
