Brand: DESTACO

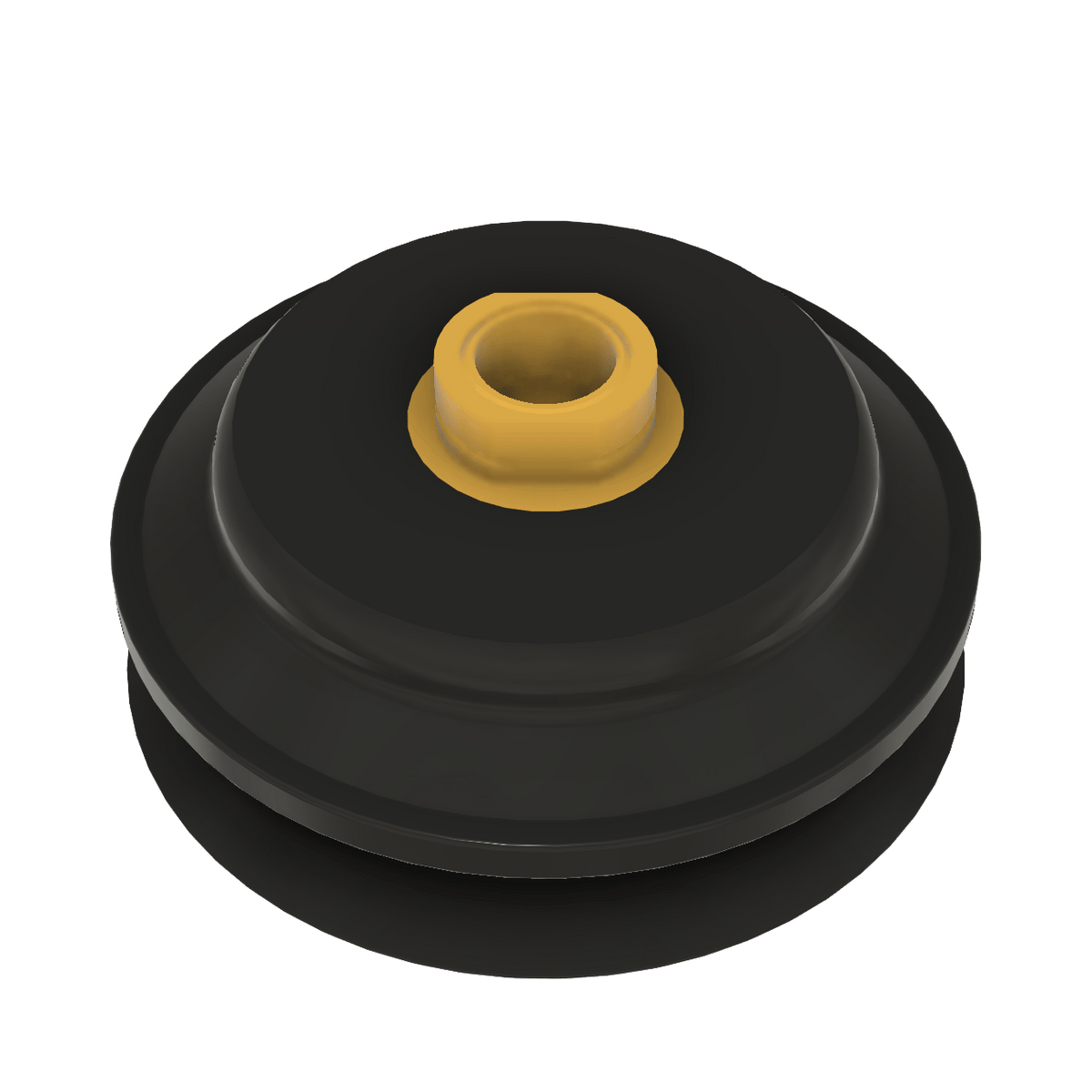

DESTACO CPI-40AC-B-60 CUP BEL 4in. B-MT BLK
SKU: DE-STA-CO-CPI-40AC-B-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the exceptional performance of DESTACO CPI-40AC-B-60 CUP BEL 4in. B-MT BLK vacuum cups! These single bellows cups are designed for moderately flat, dry surfaces and offer a holding capacity of up to 15kg horizontally and 40kg vertically. And with a durable nitrile construction and a 3/8" NPT mount, you'll feel confident and secure in your automation, workholding, and containment needs. Trust DESTACO to deliver high-quality solutions that are sure to elevate your productivity.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-40AC-B-60 CUP BEL 4in. B-MT BLK
General purpose single bellows vacuum cups best used on moderately flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Moderate compression distance allows for minor misalignments
| Holding Capacity - Horizontal Dry (kg) | 15.0 |
| Holding Capacity - Horizontal Dry (lbf) | 33.0 |
| Holding Capacity - Horizontal Wet (kg) | 3.6 |
| Holding Capacity - Horizontal Wet (lbf) | 8.0 |
| Holding Capacity - Vertical Lift (kg) | 40 |
| Holding Capacity - Vertical Lift (lbf) | 89 |
| Weight (g) | 91.0 |
| Weight (oz) | 3.2 |
| Diameter (mm) | 102.4 |
| Diameter (in) | 4.030 |
| Material | Nitrile |
| Durometer | 60 (Black) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Bellows |
| Cup Size | 102 mm |
| Cup Size | 4.00 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
