Brand: DESTACO

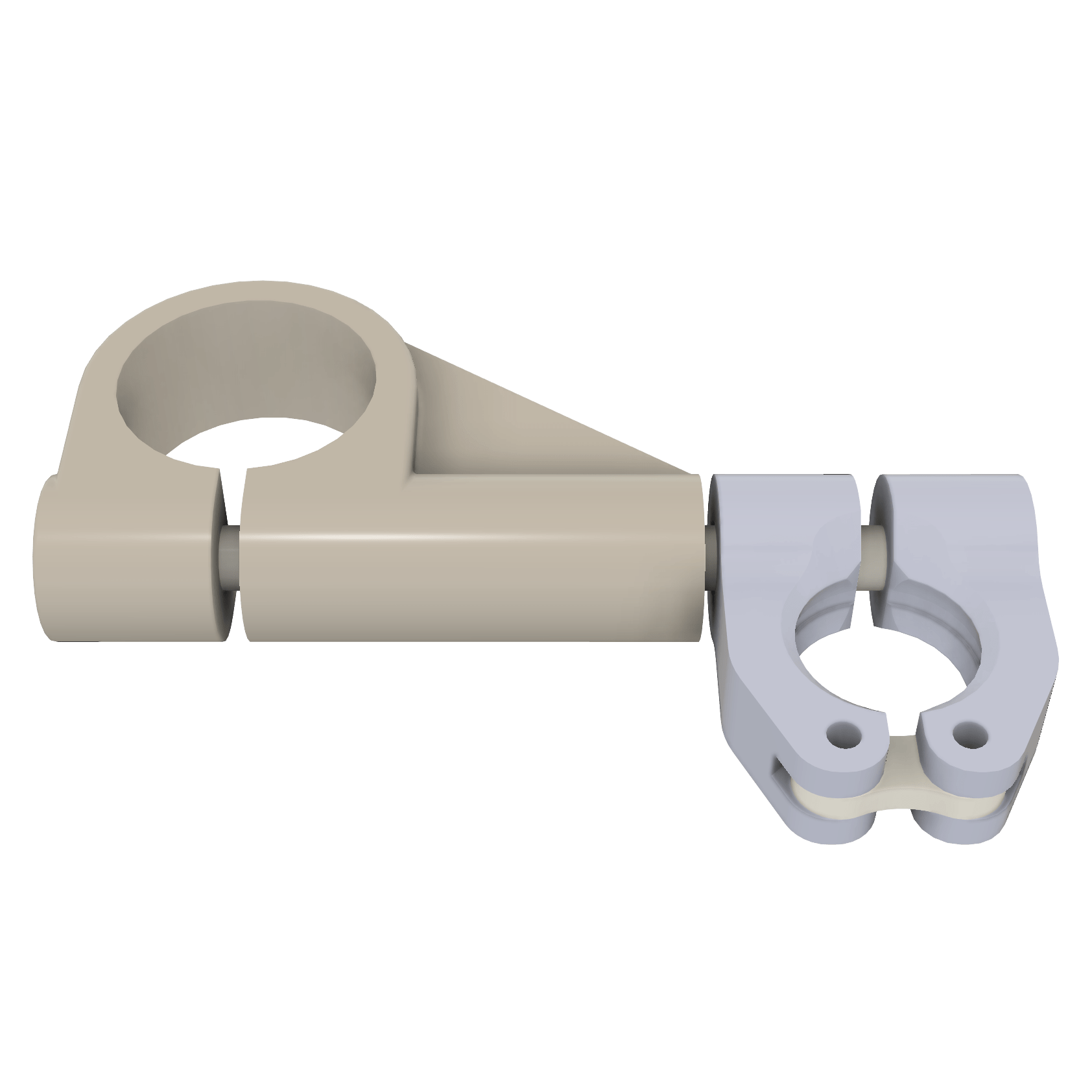

DESTACO CPI-400-15-SA-B112 4in. BALL END SWIVEL 1 1/2in. SERIES

SKU: DE-STA-CO-CPI-400-15-SA-B112
MPN: CPI-400-15-SA-B112

$99.65
Unit price per
Save $11.52

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-400-15-SA-B112 ball end swivel arm is designed for high-performance automation and workholding applications. It mounts 1.125" swivel ball accessories to a 1.50" round tube and offers 360° of rotational adjustments along three axes. The swivel arm is used to mount components such as venturis, bumpers, round locators, and proximity switches. The tube diameter is 38.1 mm (1.50 in), and the arm has a length of 106.7 mm (4.20 in). Made from aluminum with a silver finish, the arm can handle a maximum static clamp load of 271 Nm (200 ft-lb).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-400-15-SA-B112 4in. BALL END SWIVEL 1 1/2in. SERIES

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 1.125" swivel ball accessories to 1.50‚¬ round tube
Provides 360° of rotational adjustments along (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Tube Diameter (mm)	38.1
Tube Diameter (in)	1.50
Length (mm)	106.7
Length (in)	4.200
Material	Aluminum
Finish	Silver
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Swivel Arm
Tube Size	1.50 in
Weight (kg)	0.37
Weight (lb)	0.82
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
