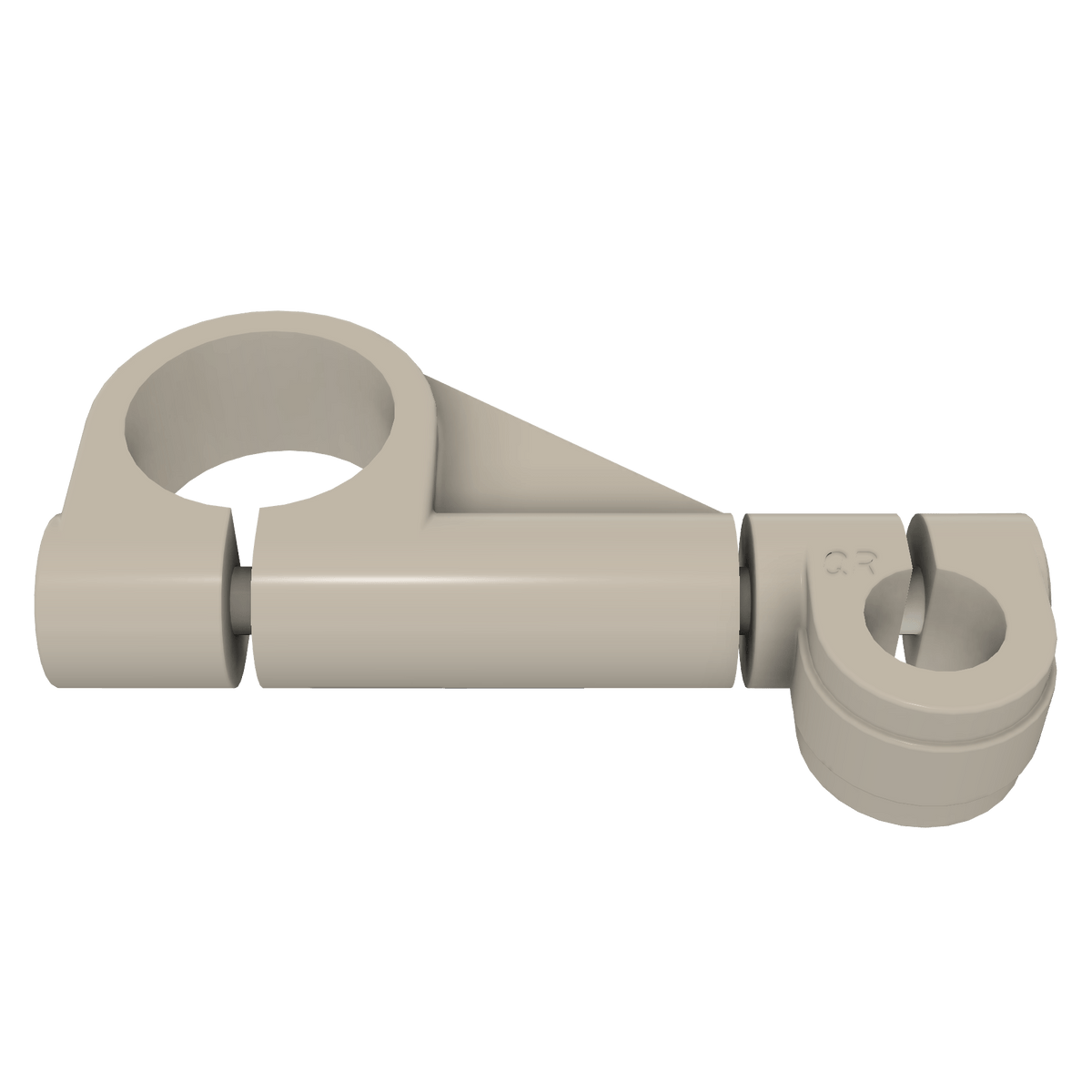

DESTACO CPI-400-15-SA SWIVEL ARM 1.5in. DIA X 4in. L

Brand: DESTACO

DESTACO CPI-400-15-SA SWIVEL ARM 1.5in. DIA X 4in. L

SKU: DE-STA-CO-CPI-400-15-SA
MPN: CPI-400-15-SA

  • $77.73
    Unit price per
  • Save $8.98
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Get the ultimate high-performance solution with the DESTACO CPI-400-15-SA SWIVEL ARM! Designed for demanding automation, workholding, and containment applications, this versatile arm features a 1.5-inch diameter and 4-inch length for optimal performance. Easily mount your 0.75-inch apple core accessories to the 1.5-inch round tube and enjoy 360 degrees of rotational adjustments along 3 axes, making it ideal for venturi, bumpers, round locators, and proximity switches. Crafted with durable aluminum and finished in sleek silver, this swivel arm can handle a maximum static clamp load of 271 Nm or 200 ft lbs. Don't settle for anything less - choose the DESTACO CPI-400-15-SA SWIVEL ARM today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-400-15-SA SWIVEL ARM 1.5in. DIA X 4in. L

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts 0.75"apple core accessories to 1.50‚¬ round tube
  • Provides 360° of rotational adjustments along (3) axes
  • Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) 19.0
Apple Core (in) 0.750
Tube Diameter (mm) 38.1
Tube Diameter (in) 1.50
Length (mm) 103.8
Length (in) 4.090
Material Aluminum
Finish Silver
Maximum Static Clamp Load (Nm) 271
Maximum Static Clamp Load (ft lb) 200
Product Type Swivel Arm
Tube Size 1.50 in
Weight (kg) 0.35
Weight (lb) 0.78
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group round tooling
Apple Core Size 19
