Brand: DESTACO

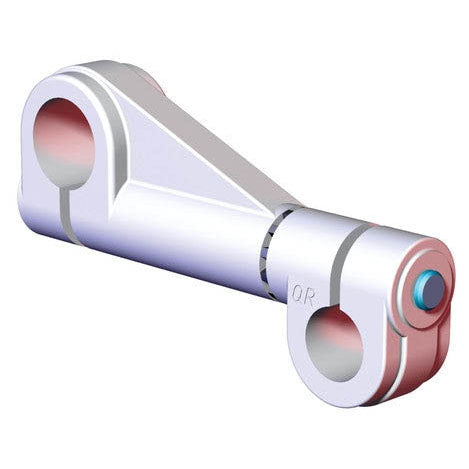

DESTACO CPI-400-1-SA SWIVEL ARM 1in. DIA X 4in. L
SKU: DE-STA-CO-CPI-400-1-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-400-1-SA is a swivel arm designed for high-performance automation, workholding, and containment applications. It features a 0.75" apple core to mount accessories onto a 1" round tube. The arm allows for 360° rotational adjustments across three axes, making it versatile for mounting components like venturis, bumpers, round locators, and proximity switches. The arm's tube diameter is 25.4 mm (1.00 in) with a length of 104.9 mm (4.13 in). It is made of aluminum with a silver finish and can handle a maximum static clamp load of 271 Nm (200 ft-lb).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-400-1-SA SWIVEL ARM 1in. DIA X 4in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 0.75" apple core accessories to 1.00‚¬ round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 19.0 |
| Apple Core (in) | 0.750 |
| Tube Diameter (mm) | 25.4 |
| Tube Diameter (in) | 1.00 |
| Length (mm) | 104.9 |
| Length (in) | 4.130 |
| Material | Aluminum |
| Finish | Silver |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 1.00 in |
| Weight (kg) | 0.31 |
| Weight (lb) | 0.70 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 19 |
