Brand: DESTACO

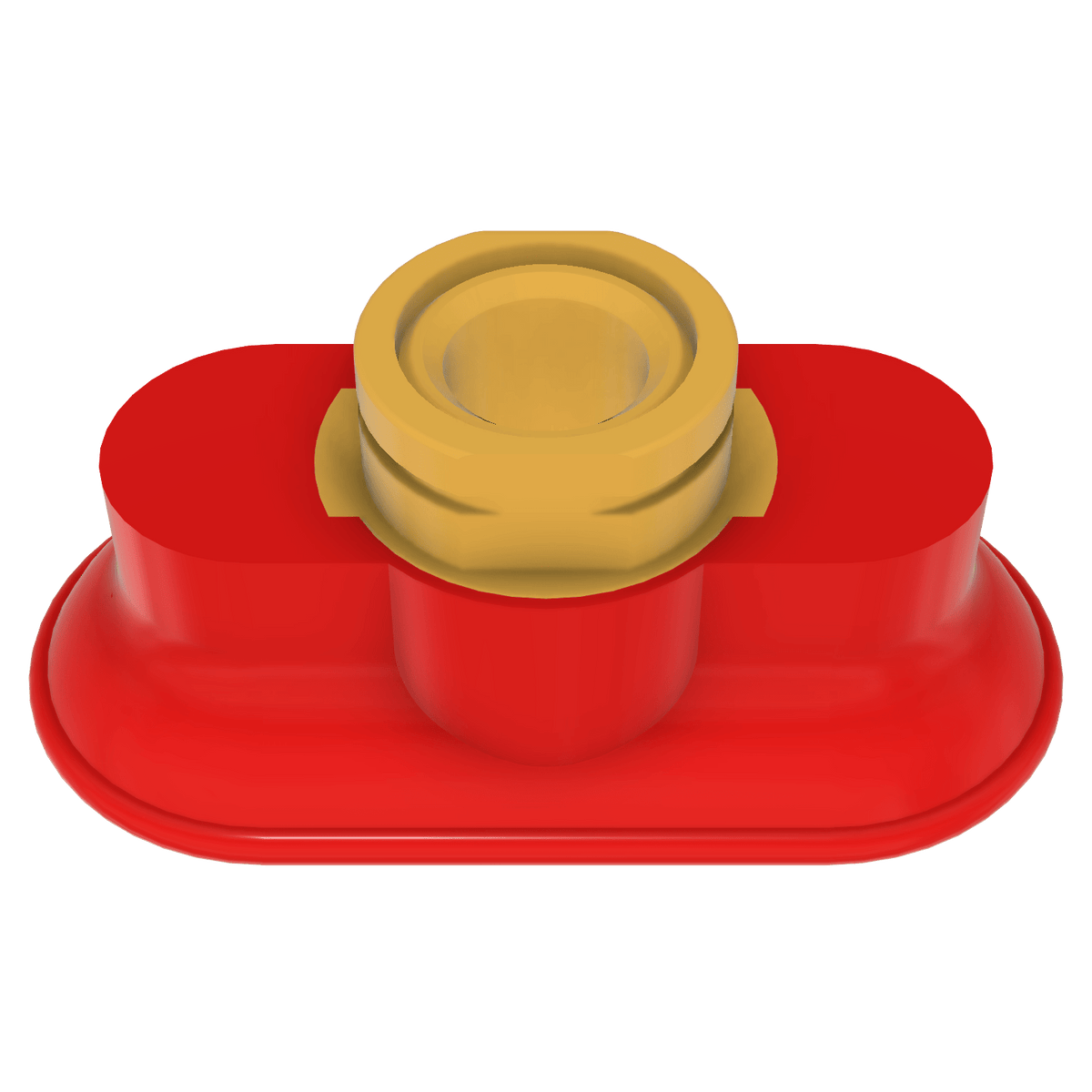

DESTACO CPI-40-75PF-B-45 CUP 153FF 45 DURO W/502-3819 INS
SKU: DE-STA-CO-CPI-40-75PF-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power of DESTACO CPI-40-75PF-B-45 CUP 153FF 45 DURO W/502-3819 INS Oval flatfoot vacuum cups - perfect for moderately flat to medium contour, dry surfaces. This versatile catalog offers high-performance solutions for automation, workholding, and containment needs. With a horizontal dry holding capacity of 6.8kg (15.0lbf) and a vertical lift capacity of 8kg (18lbf), these cups are a reliable choice for all your lifting needs. Weighing only 35g (1.2oz) and measuring 76.2mm (3.000in) in length and 38.1mm (1.500in) in width, the Nitrile Durometer 45 (Red) cups are lightweight yet sturdy. So why wait? Upgrade your equipment with a 3/8 G mount and take your productivity to new heights. Revamp your automation operations with DESTACO CPI-40-75PF-B-45 vacuum cups.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-40-75PF-B-45 CUP 153FF 45 DURO W/502-3819 INS
Oval flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
| Holding Capacity - Horizontal Dry (kg) | 6.8 |
| Holding Capacity - Horizontal Dry (lbf) | 15.0 |
| Holding Capacity - Horizontal Wet (kg) | 2.3 |
| Holding Capacity - Horizontal Wet (lbf) | 5.0 |
| Holding Capacity - Vertical Lift (kg) | 8 |
| Holding Capacity - Vertical Lift (lbf) | 18 |
| Weight (g) | 35.0 |
| Weight (oz) | 1.2 |
| Length (mm) | 76.2 |
| Length (in) | 3.000 |
| Width (mm) | 38.1 |
| Width (in) | 1.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8 G |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Flatfoot |
| Cup Size | 40 x 75 mm |
| Cup Size | 1.56 x 2.95 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
