Brand: DESTACO

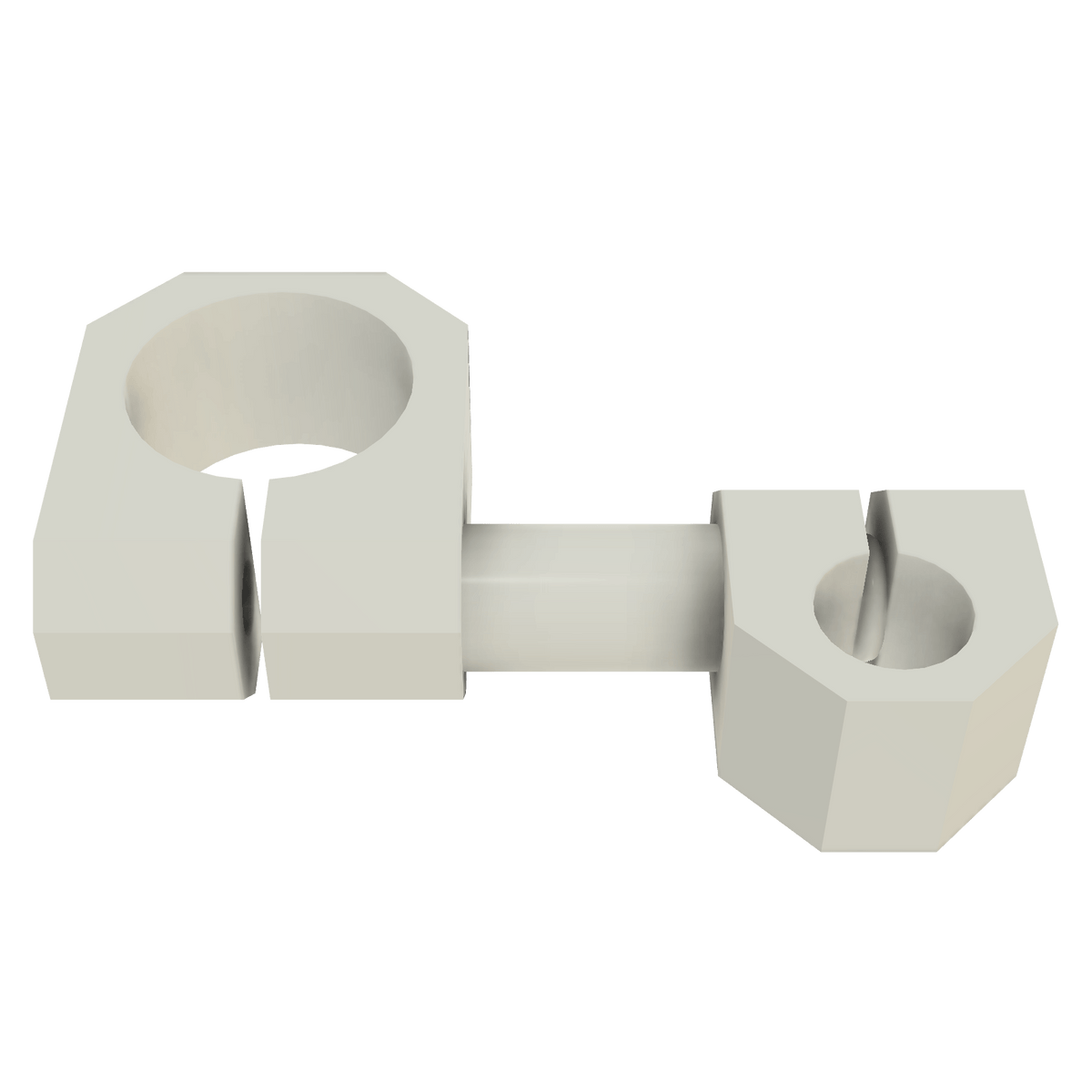

DESTACO CPI-300-25M50-MSA 25MM TO 1/2in. SWIVEL ARM ASSEMBLY
SKU: DE-STA-CO-CPI-300-25M50-MSA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-300-25M50-MSA swivel arm assembly mounts 0.50" micro apple core accessories to 25 mm round tubes. It offers 360° rotational adjustments across three axes, ideal for mounting venturi, bumpers, round locators, and proximity switches. Constructed from aluminum, it measures 76.2 mm (3.000") in length and supports a maximum static clamp load of 163 Nm (120 ft-lb). This swivel arm is a robust and versatile solution for high-precision automation and workholding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-300-25M50-MSA 25MM TO 1/2in. SWIVEL ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 12.7 mm (0.75") micro apple core accessories to 25 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 12.7 |
| Apple Core (in) | 0.500 |
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Length (mm) | 76.2 |
| Length (in) | 3.000 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 163 |
| Maximum Static Clamp Load (ft lb) | 120 |
| Product Type | Swivel Arm |
| Tube Size | 25 mm |
| Weight (kg) | 0.09 |
| Weight (lb) | 0.21 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 12.7 |
