Brand: DESTACO

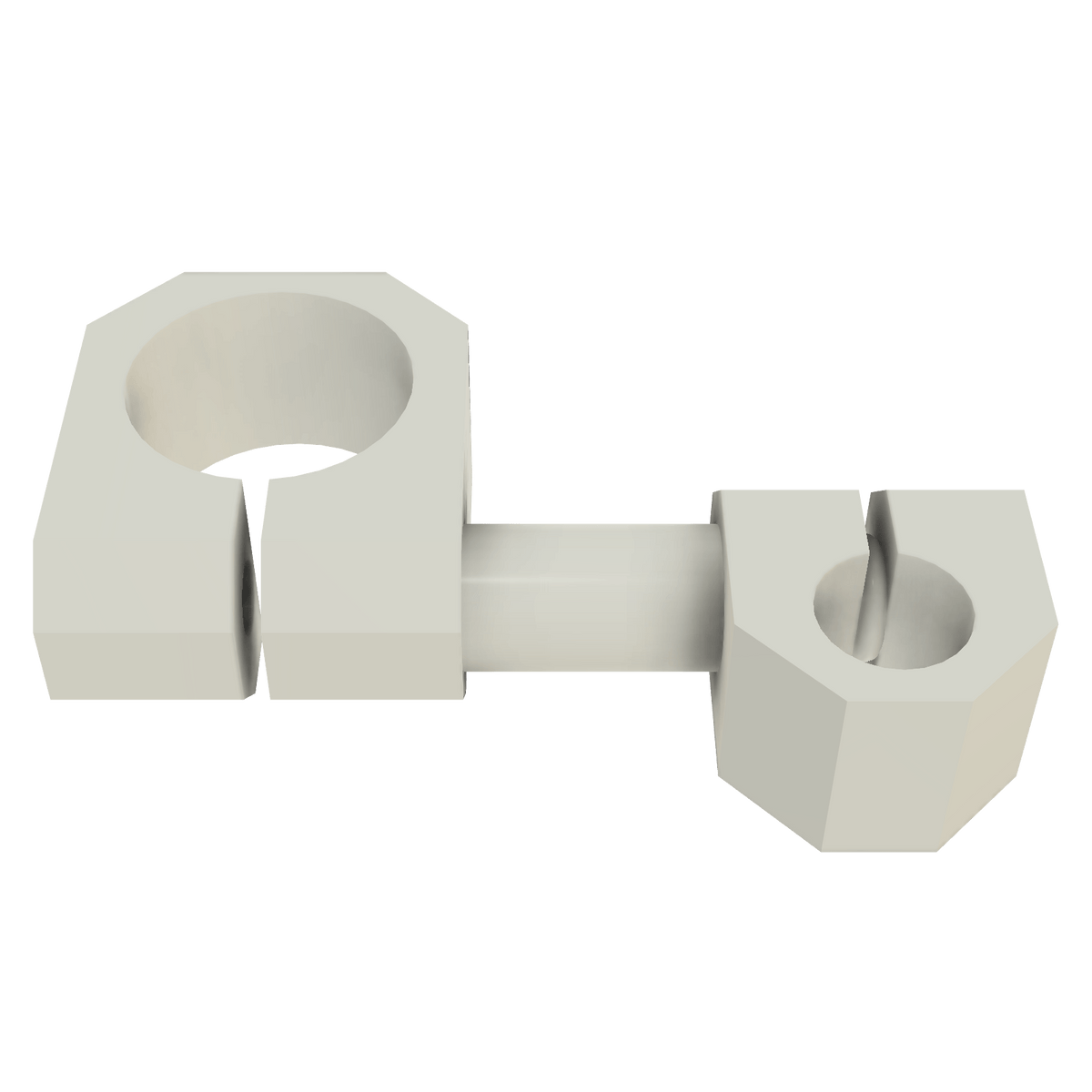

DESTACO CPI-300-1050-MSA 1in. TO 1/2in. SWIVEL ARM ASSEMBLY
SKU: DE-STA-CO-CPI-300-1050-MSA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-300-1050-MSA is a swivel arm assembly designed for mounting 0.50" micro apple core accessories to 1.00" round tubes. It provides 360° rotational adjustments across three axes, making it versatile for applications such as venturi, bumpers, round locators, and proximity switches. With a length of 76.2 mm (3.000") and a robust aluminum construction, it supports a maximum static clamp load of 163 Nm (120 ft-lb). Ideal for precision workholding and automation setups, this swivel arm combines durability with ease of adjustment.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-300-1050-MSA 1in. TO 1/2in. SWIVEL ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 0.50" micro apple core accessories to 1.00‚¬ round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 12.7 |
Apple Core (in) | 0.500 |
Tube Diameter (mm) | 25.4 |
Tube Diameter (in) | 1.00 |
Length (mm) | 76.2 |
Length (in) | 3.000 |
Material | Aluminum |
Maximum Static Clamp Load (Nm) | 163 |
Maximum Static Clamp Load (ft lb) | 120 |
Product Type | Swivel Arm |
Tube Size | 1.00 in |
Weight (kg) | 0.09 |
Weight (lb) | 0.21 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 12.7 |
